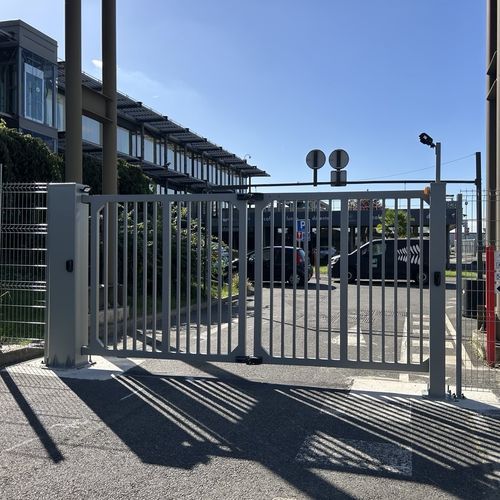

Ultra-rapid gate LBAI W-GATE SIMPLE

swingaluminumsteel

ULTRA-FAST SINGLE GATE WITH ARTIFICIAL INTELLIGENCE

Ultra-fast opening
Intelligent safety system with LBAi Detect or safety edges and photocells (optional)
Motorization and electronics integrated into the post
Compliant with EN 13 241-1 standard, validated by CSTB*

STANDARD FEATURES

• Passage width: From 2 to 5 m
• Continuous operation: 6000 cycles/day
• Gearmotor: Motorization and electronics integrated into the post
• Opening angle: 90° (option: 115°)
• Post: Technical steel post with cataphoresis coating + paint
• Locking: 500 kg electromagnet
• Leaves: (frames and bars) in painted aluminum, polyester coating
• Light signaling: Flash lights & area lighting
• ONE-C control board including: Power supply, controller, frequency inverter, SD, RJ45 (Modbus) and torque limiter
• Intelligent safety system LBAi Detect: Image analysis by artificial intelligence (optional)

TECHNICAL SPECIFICATIONS

Power supply: 230 V
Consumption: 150 W
Gearmotor: Motor 0.09 kW negative brake
MTBF: > 15,000 h
Number of cycles: 6000/day
MTTR: < 20 min
Maximum passage width: 5 m
Height: 2 - 2.5 - 3 m
Emergency operation: Brake release in posts
Temperature control: Thermostatic anti-condensation heating
Coating: Polyester powder baked at 250°
Foundation dimensions (LxWxH): 1350 x 1350 x 1000 mm
Foundation dimensions receiving post (LxWxH): 600 x 800 x 600 mm
Operating temperature: -30° +55° C
IP rating: 55
