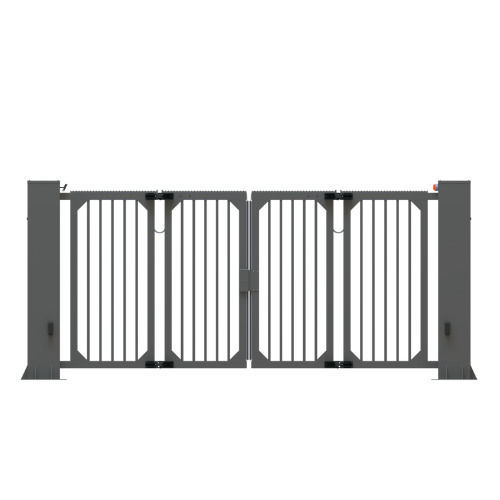

Gate with artificial intelligence LBAI W-GATEswingrightleft
Add to favorites
Compare this product
Characteristics
- Opening system
- swing
- Opening direction
- right, left
- Material
- aluminum, steel, painted steel, polyester
- Configuration
- bar, framed, double
- Technical characteristics...
- motorized, rapid action, ultra-rapid
- Options
- custom, with artificial intelligence
- Color
- gray, customizable color
- Market
- industrial
- Length
Max.: 1,000 cm
(393.7 in)Min.: 500 cm
(196.85 in)
Description
ULTRA-FAST DOUBLE GATE WITH ARTIFICIAL INTELLIGENCE
Ultra-fast opening
Intelligent safety system with LBAi Detect or safety edges and photocells (optional)
Motorization and electronics integrated into the post
Compliant with EN 13 241-1 standard, validated by CSTB*
STANDARD FEATURES
• Passage width: From 4 to 10 m
• Continuous operation: 6000 cycles/day
• Gearmotor: Motorization and electronics integrated into the post
• Opening angle: 90° (option: 115°)
• Post: Technical steel post with cataphoresis coating + paint
• Locking: 500 kg electromagnet
• Leaves: (frames and bars) in painted aluminum, polyester coating
• Light signaling: Flash lights & area lighting
• ONE-C control board including: Power supply, controller, frequency inverter, SD, RJ45 (Modbus) and torque limiter
• Intelligent safety system LBAi Detect: Image analysis by artificial intelligence (optional)
TECHNICAL SPECIFICATIONS
Power supply: 230 V
Consumption: 300 W
Gearmotor: 2 motors 0.09 kW negative brake
MTBF: > 15,000 h
Number of cycles: 6000/day
MTTR: < 20 min
Maximum passage width: 10 m
Height: 2 - 2.5 - 3 m
Emergency operation: Brake release in posts
Temperature control: Thermostatic anti-condensation heating
Coating: Polyester powder baked at 250°
Foundation dimensions (LxWxH): 1350 x 1350 x 1000 mm
Operating temperature: -30° +55° C
IP rating: 55
Ultra-fast opening
Intelligent safety system with LBAi Detect or safety edges and photocells (optional)
Motorization and electronics integrated into the post
Compliant with EN 13 241-1 standard, validated by CSTB*
STANDARD FEATURES
• Passage width: From 4 to 10 m
• Continuous operation: 6000 cycles/day
• Gearmotor: Motorization and electronics integrated into the post
• Opening angle: 90° (option: 115°)
• Post: Technical steel post with cataphoresis coating + paint
• Locking: 500 kg electromagnet
• Leaves: (frames and bars) in painted aluminum, polyester coating
• Light signaling: Flash lights & area lighting
• ONE-C control board including: Power supply, controller, frequency inverter, SD, RJ45 (Modbus) and torque limiter
• Intelligent safety system LBAi Detect: Image analysis by artificial intelligence (optional)
TECHNICAL SPECIFICATIONS
Power supply: 230 V
Consumption: 300 W
Gearmotor: 2 motors 0.09 kW negative brake
MTBF: > 15,000 h
Number of cycles: 6000/day
MTTR: < 20 min
Maximum passage width: 10 m
Height: 2 - 2.5 - 3 m
Emergency operation: Brake release in posts
Temperature control: Thermostatic anti-condensation heating
Coating: Polyester powder baked at 250°
Foundation dimensions (LxWxH): 1350 x 1350 x 1000 mm
Operating temperature: -30° +55° C
IP rating: 55
Catalogs
LBAi W-GATE double
2 Pages
LBAi W-GATE simple
2 Pages
