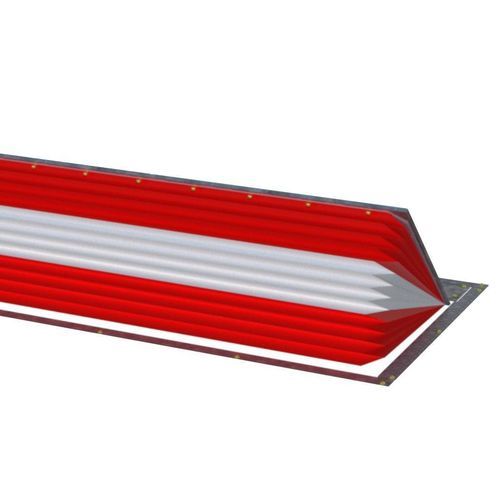

High-resistance road-blocker ALE RB50-C50 FP

impact-resistant

RETRACTABLE ROADBLOCKER
RESISTS THE IMPACT OF A 7.2T TRUCK AT 48 KM/H

Intensive and continuous operation
Installation and sealing within 24 hours
Available in surface-mounted version
Very low embedding depth
Flexible front face

STANDARD FEATURES

• Road plate:
• Hot-dip galvanized chequer steel plate
• Rolling surface composed of multiple removable plates, removable by a single person

• Front face:
• Moving part hot-dip galvanized and fitted with a flexible front face preventing deformation and risk of system blockage

• Chassis:
• Very shallow depth (12 cm) steel structure treated by galvanization

• Motorization:
• Remote hydraulic system (circuit assembled in factory), supplied with 15 m of reinforced oil-filled piping with push-pull quick coupling
• Biodegradable hydraulic oil with low viscosity variation

• Installation:
• Water drainage prepared for connection with PVC Ø100

TECHNICAL SPECIFICATIONS

Motorization: Remote hydraulic
Resistance: 640,000 J
Operating time: 4 to 6 s
MCBF: 2,000,000
MTBF: 25,000 h
MTTR: 30 min
Power failure behavior: Remains in raised position – NF behavior
Connection: 15 m hydraulic piping
Paint / Finish: Flexible front face RAL 9010 & 3001
Dimensions: 2.5 / 3 / 4 m
IP rating: IP67
