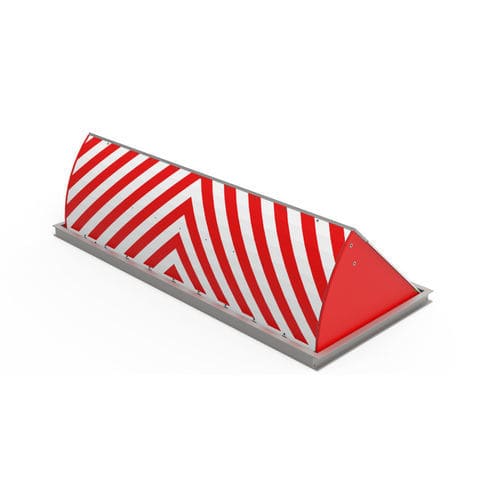

Impact-resistant road-blocker RB80-C80

RETRACTABLE ROADBLOCKER
RESISTS THE IMPACT OF A 7.5T TRUCK AT 80 KM/H

Intensive and continuous operation
Installation and sealing within 24 hours
Operational after double crash test
Monoblock front face
Surfaces exposed to rolling in stainless steel

STANDARD FEATURES

Length: 2 to 4 m
Height: 80 cm

• Road plate:
• Stainless steel chequer plate
• Rolling surface composed of multiple removable plates, removable by a single person

• Front face:
• Monoblock moving part made of high-strength steel
• Monoblock face treated by zinc metallization and epoxy powder coating RAL 3001

• Chassis:
• Steel structure treated by galvanization

• Motorization:
• Remote hydraulic system (circuit assembled in factory), supplied with 15 m of reinforced oil-filled piping with push-pull quick coupling
• Biodegradable hydraulic oil with low viscosity variation

• Drainage:
• Water drainage prepared for connection with PVC Ø100

TECHNICAL SPECIFICATIONS

Motorization: Remote hydraulic
Resistance: 1,860,000 J
Operating time: 4 to 6 s
MCBF: 2,000,000
MTBF: 25,000 h
MTTR: 30 min
Power failure behavior: Remains in raised position – NF behavior
Connection: 15 m hydraulic piping
Paint / Finish: RAL 3001
Dimensions: 2 / 3 / 4 m
IP rating: IP67
