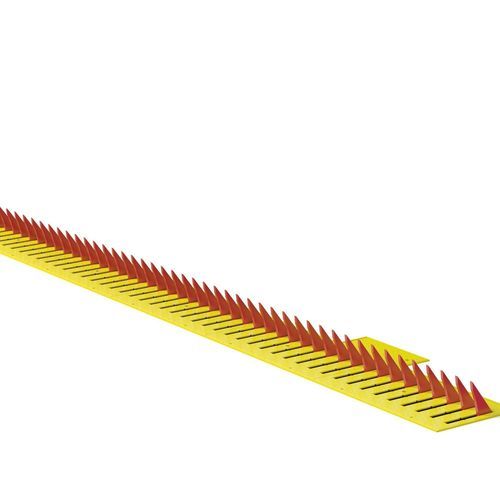

Automatic spike barrier H20

reversiblesecurity

REVERSIBLE AUTOMATIC SECURITY SPIKE BARRIER

Intensive and continuous operation
Motorization integrated in a technical compartment
Hydraulic circuit tested and connected in factory
Modular design
Standalone operation or combined with barrier

STANDARD FEATURES

• Spike barrier:
• Recessed automatic spike barrier up to 5 m
• Supports axle load up to 40 T
• Steel folded housing for spikes and hydraulic unit

• Finishes:
• Welded steel road plate with reinforcements
• Standard RAL 1021 for road plate and RAL 3020 for spikes

• Operation:
• Controlled by One-C unit: power supply, controller, frequency inverter, SD, RJ45 (Modbus) and torque limiter
• Magnetic limit switches
• Compatible with all our barriers
• Integrated hydraulic motorization

• Installation:
• Spike shaft mounted on nylon bearings

TECHNICAL SPECIFICATIONS

Motorization: 230 V
Power: 680 W
Operating time: 2 seconds
MCBF: 5,000,000
MTBF: 15,000 h
Paint / Finish: Polyester powder coating baked at 250°
Dimensions: 1 to 5 m
Spikes (H - thickness): 210 - 20 mm
Operating temperature: -30°C to +50°C
IP rating: IP67
