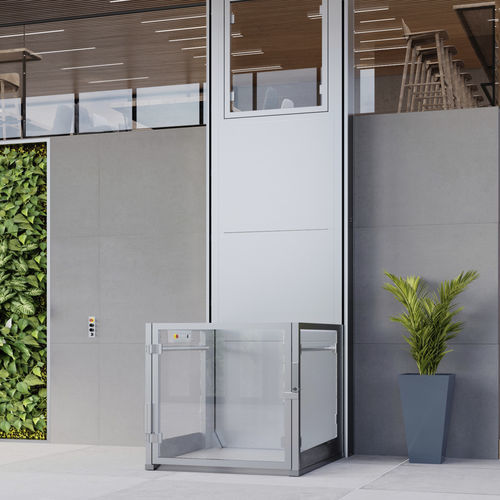

Disabled lifting platform Sigma

for wheelchairsfor buildingprofessional

Aesthetic With only 1100 mm height at upper landing Robust Constructed for indoor and outdoor use Safe Thanks to emergency power supply and platform lighting Numerous well-designed details make the vertical platform lift Sigma the perfect mobility solution for the private and public sector. Main advantages: •Compact design with slim drive tower for lifting heights up to 3000 mm •Drive by double chain for smooth operation •Aluminium components guarantee corrosion protection and low weight •Audio feedback for intuitive operation •Radio external control (either on pillars or portable) •Integrated access ramp •Ergonomically shaped control on the platform •Coating in any RAL colour possible (standard: RAL 9022) •Integrated emergency power supply Max. lifting height: Min. 650 mm, max. 3000 mm Load capacity: 385 kg Platform size: 1100 x 1400 mm Minimal platform height: 50 mm Drive system: Double chain drive Standard colour: RAL 9022 Noise level: Under 60 dB Temperature: +45 °C to -15 °C Drive engine: 1.0 kW Power supply: 1 x 230 V Emergency power supply: Integrated as standard Optionally available: Automatic door opener
