Wheelchair lifting platform Liftboy 4

for buildingprofessionaloutdoor

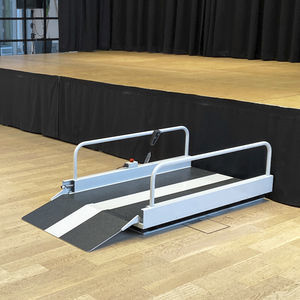

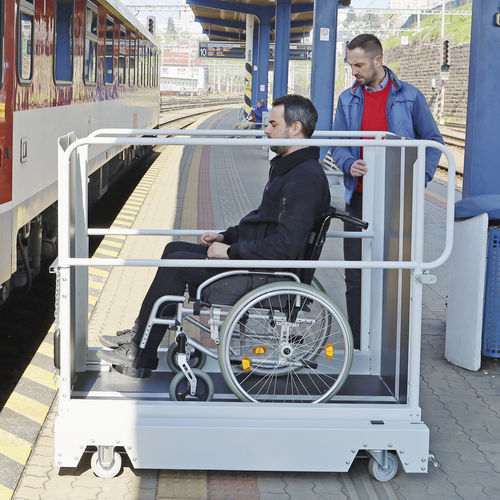

Adjustable Width of upper ramp is adaptable Convenient Thank to easy transport and simple operation Mobile Specially developed for mobile use The Liftboy 4 is mobile and can be used indoors and outdoors. Originally developed to transport wheelchair users between carriages and platforms, the Liftboy 4 is also used for theatre and concert stages. The mobile lift is state-of-the-art and easy to operate thanks to its user-friendly design and lightweight construction. The platform is equipped with foldable ramps, which size can be adjusted to the required width on site. Max. lifting height: Liftboy 4 S: 1075 mm Liftboy 4 L: 1400 mm Min. height of platform height: Liftboy 4 S: 182 mm Liftboy 4 L: 250 mm Platform size (external): Liftboy 4 S: 1215 x 1628 mm Liftboy 4 L: 1188 x 1571 mm Platform size (internal): Liftboy 4 S: 845 x 1500 mm Liftboy 4 L: 862 x 1410 mm Load capacity: 300 kg Lifting speed: 17 mm/s Standard colour: RAL 7035 Optional any RAL colour is possible Power supply: 24 V DC, battery operated Safety curtain: Liftboy 4 S: Yes Liftboy 4 L: No
