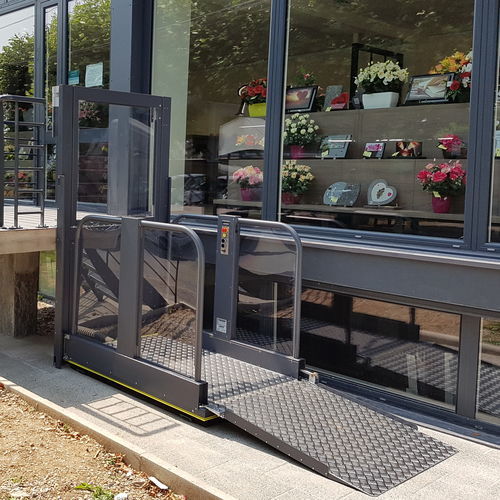

Disabled lifting platform Liftboy 5

for wheelchairsfor buildingprofessional

Compact Only 125mm platform structure for the lifting mechanism Resistant Can be used indoors and outdoors Battery operated Emergency power supply with integrated emergency lowering The Liftboy 5 is an unique vertical platform lifts with a lifting height of 1300mm. This double-scissor lifting table is driven by 2 electric actuators and achieves a collapsed height of only 120mm. The lift construction is based on the European Norm EN 81-41. It is thus suitable for public and private installation alike and its modern and robust design fulfils highest customer expectations regarding aesthetics and endurance. •Lifting height up to 1300mm •Electrical double-scissor drive •Stable and robust platform •Platform size up to 1100x1400mm •Automatic folding ramp •Optional gate on the platform •Optional automatic gate openers •Emergency power supply and emergency lowering of the platform Max. lifting height: 1300 mm Lifting speed: 25 mm/s Load capacity: 315 kg Surface treatment: RAL 7035 Optional any RAL color Drive system: 24 V actuator with scissor mechanism Power supply: 1 x 230 V / 50-60 Hz Platfrom width: 900 or 1100mm Platform length: 1400mm
