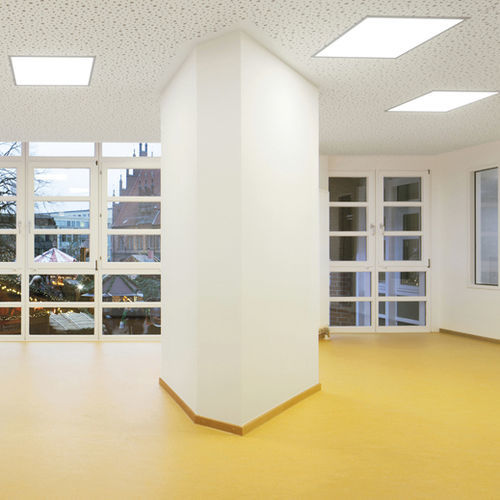

Recessed ceiling light fixture CUBIC MAX M4LEDsquareIP20
Add to favorites
Compare this product
Characteristics
- Type
- recessed ceiling
- Light source
- LED
- Shape
- square
- Protection class
- IP20
- Application
- commercial, for hotel, for office, for shop, for school, for restaurant, museum, for exhibitions, home
- Material
- aluminum
- Color
- white, black, gray, silver-colored
- Style
- contemporary
- Dimmable
- dimmable
- Height
100 mm
(4 in)- Length
379 mm, 479 mm, 621 mm, 910 mm
(15 in, 19 in, 24 in, 36 in)- Power
Min.: 12 W
Max.: 129 W
- Luminous flux
Min.: 1,310 lm
Max.: 13,190 lm
- Color temperature
Min.: 2,200 K
Max.: 6,500 K
- Color rendering index (CRI)
80 unit, 90 unit
Description
Recessed mounted LED luminaire for cut-out ceilings. Direct only light distribution. Luminaire body with surrounding frame made of aluminium. Surface natural anodised or white, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White. Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. Mounting brackets for assembly included. Vertical Installation not possible. On request: Integration of emergency lighting components, sensor technology.
