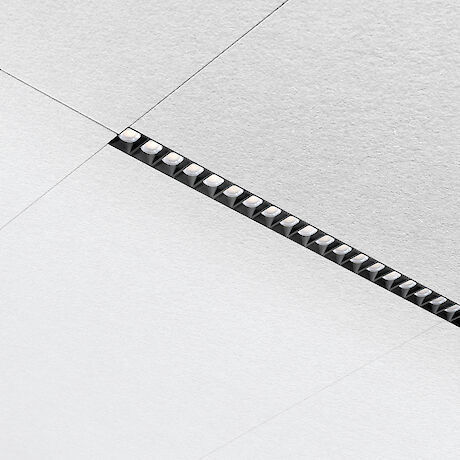

Recessed ceiling spotlight MATRIC 55 L3

LEDlinearoutdoor

Recessed LED luminaire designed for installation in acoustic ceilings, providing direct-only light distribution via a 55 mm aluminium light channel. Custom lengths available for linear runs and project-specific installations.

Optical systems & light output

• Direct emission using precision lenses with Lens Louvre for wide, uniform symmetrical distribution and high glare control (UGR < 19) — suitable for offices and workplaces.
• Microprismatic screen in special acrylic for optimized glare reduction at workstations.
• Satin opal diffuser for general lighting with high transmittance and uniformity.
• Wallwasher variant for uniform illumination of vertical surfaces.

Control & driver

• Driver integrated into the luminaire housing; options include switchable (On/Off) or dimmable drivers (DALI, Touch-Dim, Casambi wireless).

Colour & colour rendering

• Colour temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700–6500K).
• Colour binning: ≤ MacAdam 3.
• Colour rendering: CRI > 80, CRI > 90 or Full Spectrum options.

Integration & optional equipment

• On request: integration of tracks and spotlights, emergency lighting modules and sensor technology (multisensor option available).

Product adjustments / additional modules

• 90° Corner Opal / Microprismatic
• Midpin XD4 Downlight
• Midpin XM Spotlight
• Multisensor

Available surface finishes (selection)

• Snow White, Radiant Silver, Jet Black, Natural Anodised, Ivory White, Anodic Silver, Stone Grey, Urban Graphite, Anodic Bronze, Matte Terra, Medium Brass, Anodic Champagne
• Satin Silver, Satin Taupe, Satin Cloud, Satin Gold, Satin Pale Gold, Satin Ivy Green, Satin Copper, Satin Cipria, Satin Bronze

Downloads / configuration

• Catalogue page and assembly instructions available via product downloads. Configuration/data files (LDT, IES, ULD, TXT etc.) downloadable per configuration from the product download finder.

Technical specifications

• Light channel profile width: 55 mm (aluminium).
• Light distribution: Direct only (options: Lens Louvre, microprismatic screen, opal diffuser, wallwasher).
• Lengths: custom lengths available; standard examples L = 890 mm, 1003 mm, 1182 mm, 1253 mm, 1475 mm, 1503 mm, 1754 mm, 1765 mm, 2004 mm, 2055 mm (also linear‑metre/special lengths).
• Luminous flux examples by configuration: approximately 1,640 lm (13 W) up to ~4,330 lm (33 W), depending on length and optics.
• Power consumption examples: typical ranges 13 W, 16 W, 17 W, 18 W, 22 W, 23 W, 26 W, 27 W, 33 W (dependent on length/variant).
• Driver options: On/Off, DALI dimmable, Touch‑Dim, Casambi (wireless).
• Colour temperature range: 2200K – 6500K (including Tunable White 2700–6500K).
• Colour rendering: CRI > 80, CRI > 90 or Full Spectrum; binning ≤ MacAdam 3.
• Integration options: tracks & spotlights, emergency lighting components, sensor technology (on request).
