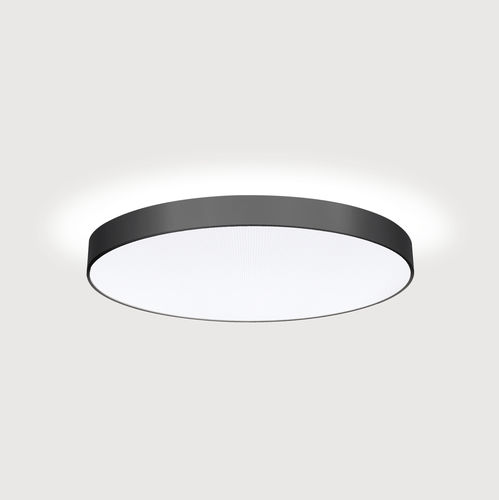

Surface-mounted light fixture BASIC MAX Y1/X1LEDroundIP40
Add to favorites
Compare this product
Characteristics
- Type
- surface-mounted
- Light source
- LED
- Shape
- round
- Protection class
- IP40
- Application
- commercial, for office
- Material
- aluminum profile, thermo-lacquered aluminum, acrylic glass
- Color
- white, black, gray, silver-colored
- Style
- contemporary
- Dimmable
- dimmable
- Other characteristics
- DALI, indirect
- Length
Max.: 1,200 mm
(47 in)Min.: 300 mm
(12 in)- Power
Max.: 266 W
Min.: 12 W
- Luminous flux
Max.: 28,420 lm
Min.: 1,440 lm
- Color temperature
Max.: 6,500 K
Min.: 2,200 K
- Color rendering index (CRI)
80 unit, 90 unit
Description
LED surface-mounted luminaire for walls and ceilings. Direct light distribution and indirect lighting corona or direct only light distribution. Luminaire body made of aluminum profile in 6 different diameters from 300mm to 1200mm. Surface white, silver, graphite, black, champagne or copper coated. Further surface options see Lightnet-Surface-Collection or RAL of your choice. Microprismatic screen with optimized glare reduction especially for workplaces. Opal diffuser made of acrylic glass. Driver integrated into luminaire housing, optionally switchable or dimmable (DALI, Touch-Dim, Casambi). Colour temperature 2200K, 2700K, 3000K, 3500K, 4000K, 6500K or Tunable White (2700-6500K). Binning≤ MacAdam 3. Colour rendering CRI>80, CRI>90 or Full Spectrum. On request: Integration of emergency lighting components, sensor technology.
