Recessed ceiling light fixture LIQUID LINE 60 A4

LEDlinearcurved

Product overview

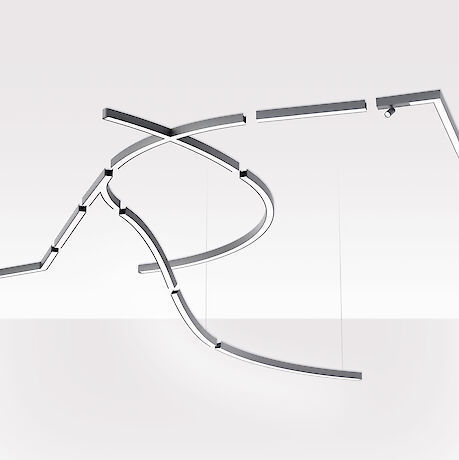

The Liquid Line 60 A4 Surface is a highly flexible LED surface-mounted light system designed for direct-only light distribution. Each module is a stand-alone luminaire with an integrated driver and a connector system that allows creation of custom, linear and curved lighting structures.

Key features

• Direct-only light distribution for efficient task and general lighting.
• Highly flexible system composed of linear elements, vertically and horizontally curved elements and Y- and X-connectors enabling complex structures.
• Each module includes an integrated driver; modules can be connected via a sophisticated connector system to form custom lighting layouts.
• Millimetre-precise manufacturing; bespoke curves possible in small quantities through software-based production. Lightnet provides technical drawings based on customer specifications for review and approval.
• Luminaire body with soft corners, made from a single-piece 60 mm wide aluminium profile with no visible seams at the ends.
• Available surface finishes include surface white, silver, graphite, black, champagne, copper and many additional options via the Lightnet Surface Collection or custom RAL colours.
• Optical options: microprismatic screen (optimized glare reduction for workplaces) or satin opal diffuser (for general lighting).
• Driver options: switchable or dimmable (DALI, Touch-Dim, Casambi).
• Colour temperatures available: 2200K, 2700K, 3000K, 3500K, 4000K and 6500K. Binning ≤ MacAdam 3.
• Colour rendering options: CRI >80, CRI >90 or Full Spectrum.

Available module types

• Linear modules
• Sharp corner modules
• Bend modules
• Curve modules
• Y-modules
• X-modules
• Wave modules
• Midpin spotlights

Surface collections (selection)

• Sustainability Plus Collection (focus on sustainable powder coatings and production recovery processes)
• Deep Matte Collection (deep matt, velvety finishes)
• Satin Collection (satin finish with depth of colour and fine sheen)

Technical specifications

• Luminaire body: 60 mm wide aluminium profile, crafted in one piece with soft corners and no visible end seams.
• Light distribution: Direct-only.
• Optical systems: Microprismatic screen (glare-optimised for workplaces) or satin opal diffuser.
• Driver: Integrated per module; options switchable or dimmable (DALI, Touch-Dim, Casambi).
• Colour temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K.
• Binning: ≤ MacAdam 3.
• Colour rendering: CRI >80, CRI >90, Full Spectrum.
• Manufacturing: Millimetre-precise, bespoke curves supported; Lightnet provides technical drawings for customer-approved structures.
• Finish options: Multiple powder-coated and anodised colours (examples: Snow White, Radiant Silver, Jet Black, Natural Anodised, plus many Satin/Deep Matte finishes).
• Applications: Modular lighting solutions for offices and architectural projects requiring design flexibility and custom finishes.
