USB charger USB-AC-13

Short description

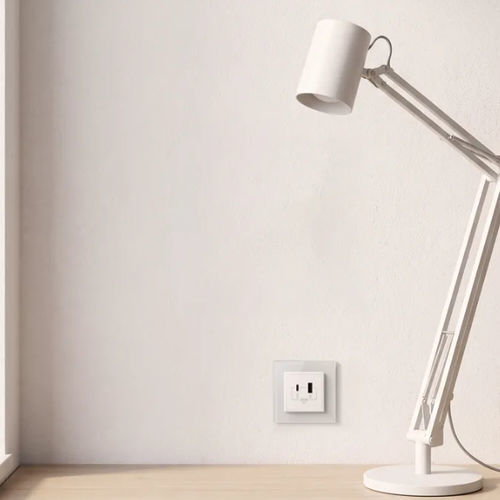

Flush-mounted USB-A + USB-C 36W wall charger mechanism for fast, simultaneous charging of smartphones, tablets and USB accessories. Designed for discreet, integrated installation in commercial and residential electrical systems.

Details
Optimize device charging without external adapters with this flush-mounted USB-A + USB-C charger mechanism. Built-in USB ports and intelligent charge management deliver efficient power distribution for multiple devices. The compact mechanism fits standard electrical boxes and matches modern interiors when combined with a glass faceplate (sold separately). Ideal for installation in offices, retail spaces, hospitality and residential projects.

Product highlights

• Combined USB-A and USB-C ports for simultaneous charging
• Maximum charging power: 36 W
• Suitable for smartphones, tablets, smartwatches, headphones and USB accessories
• Smart automatic charge management for safe, efficient charging
• Eliminates the need for separate mains adapters, saving space
• Easy installation in standard round or square back boxes
• Premium aesthetic when paired with a glass faceplate (sold separately)

Installation & compatibility

• Compatible with round or square back boxes ≥ 40 mm
• Can be mounted horizontally or vertically
• Designed for standard electrical installations
• Live / neutral connection via screw terminals
• Compatible devices: smartphones, tablets, smartwatches, headphones, USB accessories

Pair it with

• Gloss or matt SR tempered glass faceplate and metal mounting frame (sold separately)
• Faceplate combinations from 1-gang to 4-gang

What's in the box

• USB-A + USB-C charger socket mechanism - USB-AC-13, 36W, white
• Installation guide
• Glass faceplate and metal mounting frame sold separately

Technical specifications

• Manufacturer: Livolo
• Reference: USB-AC-13
• Dimensions: 45 × 45 × 35 mm
• Type: Flush-mounted wall charger mechanism
• Operating temperature: -10°C to +40°C
• Connection: Screw terminals
• Cable cross-section: 1.5 to 2.5 mm²
• Certification: CE & RoHS
• Maximum power: 36 W
• Permissible humidity: Up to 95%
• Stripping length: 10 mm
• Material: Plastic
• Ports: USB-A + USB-C
• Categories: Network and multimedia
• Function: USB-A + USB-C charger
• Weight: 0.100 kg
