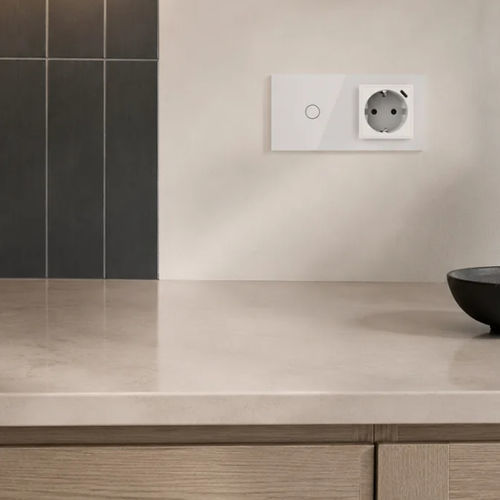

Power push-button A-C1/SR-11B

for control

Description
Glass faceplate designed to accommodate a 1-button touch switch and one fittings mechanism (power socket, network and/or multimedia). Suited to compact, modular wall installations where a clean, resistant glass surface is required. Colour is applied behind the glass to preserve finish and reduce visible wear.

Product highlights

• Mixed configuration: 1-button touch switch + function module
• Tempered glass surface
• Compact 151 × 80 × 4 mm format
• Colour applied behind glass to prevent fading
• Enables modular wall combinations
• Easy installation and precise alignment

Installation & compatibility

• Compatible with 1 one-button touch switch + 1 fittings mechanism
• Mounting on metal mounting frames (included C7-MF)
• Compatible with round or square back boxes ≥ 40 mm
• Can be mounted horizontally or vertically

Pair it with

• All 1-button touch mechanisms, power sockets and multimedia modules
• Mechanisms and sockets sold separately

What's in the box

• Glass faceplate 1 button + 1 gang
• C7-MF metal mounting frame
• Mechanism sold separately

Technical specifications

• Manufacturer: Livolo
• Reference: A-C1/SR-11B
• Dimensions: 151 × 80 × 4 mm
• Type: Double faceplate
• Certification: CE & RoHS
• Material: Tempered glass
• Configuration: 1 circuit + 1 gang
• Category: Faceplate
• Number of gangs: 2
• Layout: 1 button + 1 gang
• Weight: 0.184 kg
