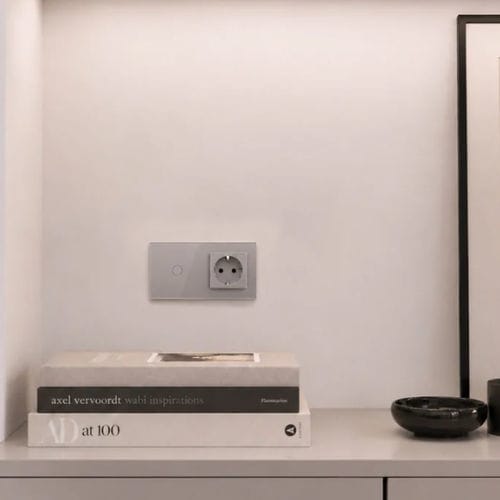

Multimedia electrical socket holder A-C1/SR-13B

Description
Glass faceplate designed to house a 1-button touch switch and a single-gang fittings module (power, network or multimedia). It provides a flush, contemporary finish for interior electrical installations and preserves surface colour over time.

Overview
Bring a precise, space-saving finish to switch and socket combinations with this double glass faceplate. It accepts one 1-button touch mechanism and one 1-gang module, enabling mixed configurations while keeping a slim wall profile. The colour is applied behind the tempered glass to prevent fading and ensure long-term visual consistency.

Product highlights

• Configuration: 1-button touch + 1-gang module
• Tempered glass construction
• Scratch- and impact-resistant surface
• Colour applied behind glass for long-lasting finish
• Supports mixed switch and socket configurations
• Easy installation and precise alignment

Installation & compatibility

• Compatible with one 1-button touch mechanism and one fittings module
• Mounts on C7-MF metal mounting frame
• Fits round or square back boxes ≥ 40 mm
• Horizontal or vertical mounting orientation

Pair it with

• All 1-button touch mechanisms, sockets and multimedia modules
• Mechanism sold separately

What's in the box

• Glass faceplate 1 button + 1 gang
• C7-MF metal mounting frame
• Mechanism sold separately

Technical specifications

• Manufacturer: Livolo
• Reference: A-C1/SR-13B
• Dimensions: 151 × 80 × 4 mm
• Material: Tempered glass
• Type: Double faceplate
• Configuration: 1 circuit + 1 gang
• Number of gangs: 2
• Layout: 1 button + 1 gang
• Certification: CE & RoHS
• Category: Faceplate
• Available colours: White, Black, Gray, Gold
• Available finishes: Gloss, Matt
• Compatible back box: round or square ≥ 40 mm
• Installation: on metal mounting frames; horizontal or vertical
• Weight: 0.184 kg
