PRODUCT FEATURES
High efficiency pumps with ECM-technology and permanent magnet rotor
Low power consumption
EEI ≤0.18
Stainless steel pump housing
Control modes:
Proportional Pressure
Constant Pressure
Constand Speed
Automatic “air purge”
Plug
Insulation shell
Flow rate: up to 4,5 m³/h
Head: up to 8 m
ecocirc N – a smarter choice

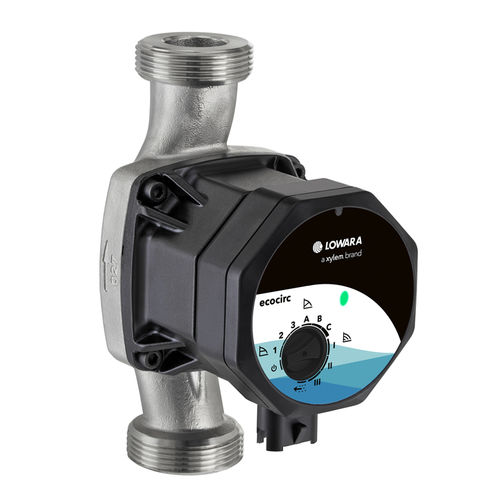

The Lowara Ecocirc N circulation pumps are designed for water circulation in domestic hot water systems. With 14 models and multiple control modes, the new Ecocirc range offers a smarter choice in the domestic hot water circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique “one turn” knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc range reaches an EEI level ≤ 0.18.
The pump can be used for:
Refurbishment or extension of existing systems
Single-family houses or apartment buildings
Domestic hot water systems
Benefits
Efficiency
Best-in-class energy efficiency (EEI ≤0.18)
ECM motor for intelligent speed control
Up to 80% lower power consumption
Optimized hydraulics
Simplicity
Multifunctional “one turn” knob
Compact and easy to install
Reliability
Robust proven design
Stainless steel pump housing
Dry-run protection
Warnings and alarms visualization
Economy
Insulation shell as standard
GENERAL SPECIFICATION
ECOCIRC N
DELIVERY
Up to 4.5 m3/h
HEAD
Up to 8 m
POWER SUPPLY
Single-phase 200-240 V 50/60 Hz
POWER
up to 60W
MAXIMUM OPERATING PRESSURE
10 bar (PN 10)
TEMPERATURE OF PUMPED LIQUID
-10°C – 110°C
