Water pump E-GS
electricmetal

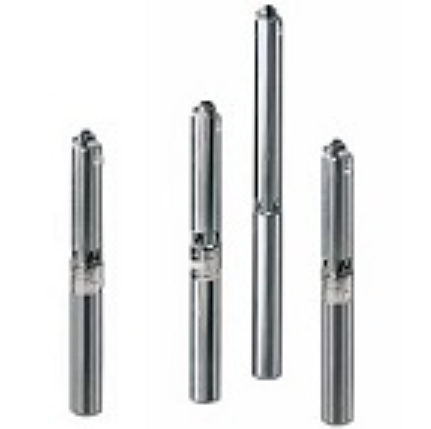

Water pump - E-GS - LOWARA - electric / metal
Water pump - E-GS - LOWARA - electric / metal
Water pump - E-GS - LOWARA - electric / metal - image - 2
Water pump - E-GS - LOWARA - electric / metal - image - 3
Add to favorites
Compare this product

Characteristics

Fluid
water
Operation
electric
Material
metal
Flow

1 m³/h, 2 m³/h, 4 m³/h, 12 m³/h, 16 m³/h
(35.31467 ft³/h, 70.62933 ft³/h, 141.25867 ft³/h, 423.776 ft³/h, 565.03467 ft³/h)

Height

1,597.5 mm
(62.89 in)

Description

Series
e-GS

Product list / models (table present on the page)
  • 2GS30T-C4S — Phase: 3; Nominal flow: 2 m3/h; Power: 3 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 12GS40T/B-C4S — Phase: 3; Nominal flow: 12 m3/h; Power: 4 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (Revit .rfa), BIM (IFC .ifc); Previews: 2D preview, 3D preview
  • 12GS55RT/B-C4S — Phase: 3; Nominal flow: 12 m3/h; Power: 5.5 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 12GS11M/B-C4S — Phase: 1; Nominal flow: 12 m3/h; Power: 1.1 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 12GS11T/B-C4S — Phase: 3; Nominal flow: 12 m3/h; Power: 1.1 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 12GS15M/B-C4S — Phase: 1; Nominal flow: 12 m3/h; Power: 1.5 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 12GS15T/B-C4S — Phase: 3; Nominal flow: 12 m3/h; Power: 1.5 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 12GS22M/B-C4S — Phase: 1; Nominal flow: 12 m3/h; Power: 2.2 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 12GS22T/B-C4S — Phase: 3; Nominal flow: 12 m3/h; Power: 2.2 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 12GS30T/B-C4S — Phase: 3; Nominal flow: 12 m3/h; Power: 3 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 12GS55T/B-C4S — Phase: 3; Nominal flow: 12 m3/h; Power: 5.5 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 12GS75T/B-C4S — Phase: 3; Nominal flow: 12 m3/h; Power: 7.5 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 16GS15M-C4S — Phase: 1; Nominal flow: 16 m3/h; Power: 1.5 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 16GS15T-C4S — Phase: 3; Nominal flow: 16 m3/h; Power: 1.5 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 16GS22M-C4S — Phase: 1; Nominal flow: 16 m3/h; Power: 2.2 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 16GS22T-C4S — Phase: 3; Nominal flow: 16 m3/h; Power: 2.2 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 16GS30T-4OS — Phase: 3; Nominal flow: 16 m3/h; Power: 3 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 16GS30T-C4S — Phase: 3; Nominal flow: 16 m3/h; Power: 3 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 16GS40T-4OS — Phase: 3; Nominal flow: 16 m3/h; Power: 4 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 16GS40T-C4S — Phase: 3; Nominal flow: 16 m3/h; Power: 4 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc); Previews: 2D preview, 3D preview
  • 16GS55RT-C4S — Phase: 3; Nominal flow: 16 m3/h; Power: 5.5 kW; Motor size: 4''; Available documents: 2D (.dxf), 3D (.stp); Previews: 2D preview, 3D preview
  • 16GS55T-C4S — Phase: 3; Nominal flow: 16 m3/h; Power: 5.5 kW; Motor size: 4''
  • 16GS75T-L4C — Phase: 3; Nominal flow: 16 m3/h; Power: 7.5 kW; Motor size: 4''
  • 1GSL02M-C4S — Phase: 1; Nominal flow: 1 m3/h; Power: 0.25 kW; Motor size: 4''; Documents: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc)
  • 1GSL03M-C4S — Phase: 1; Nominal flow: 1 m3/h; Power: 0.37 kW; Motor size: 4''
  • 1GSL03T-C4S — Phase: 3; Nominal flow: 1 m3/h; Power: 0.37 kW; Motor size: 4''
  • 1GSL05M-C4S — Phase: 1; Nominal flow: 1 m3/h; Power: 0.55 kW; Motor size: 4''
  • 1GSL05T-C4S — Phase: 3; Nominal flow: 1 m3/h; Power: 0.55 kW; Motor size: 4''
  • 1GSL07M-C4S — Phase: 1; Nominal flow: 1 m3/h; Power: 0.75 kW; Motor size: 4''
  • 1GSL07T-C4S — Phase: 3; Nominal flow: 1 m3/h; Power: 0.75 kW; Motor size: 4''
  • 1GSL11M-C4S — Phase: 1; Nominal flow: 1 m3/h; Power: 1.1 kW; Motor size: 4''
  • 1GSL11T-C4S — Phase: 3; Nominal flow: 1 m3/h; Power: 1.1 kW; Motor size: 4''
  • 1GSL15M-C4S — Phase: 1; Nominal flow: 1 m3/h; Power: 1.5 kW; Motor size: 4''
  • 1GSL15T-C4S — Phase: 3; Nominal flow: 1 m3/h; Power: 1.5 kW; Motor size: 4''
  • 2GS02M-4OS — Phase: 1; Nominal flow: 2 m3/h; Power: 0.25 kW; Motor size: 4''
  • 2GS02M-C4S — Phase: 1; Nominal flow: 2 m3/h; Power: 0.25 kW; Motor size: 4''
  • 2GS03M-C4S — Phase: 1; Nominal flow: 2 m3/h; Power: 0.37 kW; Motor size: 4''
  • 2GS03T-C4S — Phase: 3; Nominal flow: 2 m3/h; Power: 0.37 kW; Motor size: 4''
  • 2GS05M-C4S — Phase: 1; Nominal flow: 2 m3/h; Power: 0.55 kW; Motor size: 4''
  • 2GS05T-C4S — Phase: 3; Nominal flow: 2 m3/h; Power: 0.55 kW; Motor size: 4''
  • 2GS07M-C4S — Phase: 1; Nominal flow: 2 m3/h; Power: 0.75 kW; Motor size: 4''
  • 2GS07T-C4S — Phase: 3; Nominal flow: 2 m3/h; Power: 0.75 kW; Motor size: 4''
  • 2GS07T-L4C — Phase: 3; Nominal flow: 2 m3/h; Power: 0.75 kW; Motor size: 4''
  • 2GS11M-C4S — Phase: 1; Nominal flow: 2 m3/h; Power: 1.1 kW; Motor size: 4''
  • 2GS11T-C4S — Phase: 3; Nominal flow: 2 m3/h; Power: 1.1 kW; Motor size: 4''
  • 2GS15M-C4S — Phase: 1; Nominal flow: 2 m3/h; Power: 1.5 kW; Motor size: 4''
  • 2GS15T-C4S — Phase: 3; Nominal flow: 2 m3/h; Power: 1.5 kW; Motor size: 4''
  • 2GS22M-C4S — Phase: 1; Nominal flow: 2 m3/h; Power: 2.2 kW; Motor size: 4''
  • 2GS22T-C4S — Phase: 3; Nominal flow: 2 m3/h; Power: 2.2 kW; Motor size: 4''
  • 4GS03M-C4S — Phase: 1; Nominal flow: 4 m3/h; Power: 0.37 kW; Motor size: 4''


Documentation and previews
For many models downloadable CAD/CAE files and previews are available: 2D (.dxf), 3D (.stp), ZIP archives containing resources, BIM (Revit .rfa and IFC .ifc) and 2D (PNG) and 3D previews (viewer). URLs or direct links to files are not included here (only the document types detected on the page).

Features / technical specifications
  • Recurring fields for each model: Phase, Nominal flow (expressed in m3/h), Power (expressed in kW), Motor size (noted as 4'').
  • Nominal flow range shown on the page: 1 m3/h, 2 m3/h, 4 m3/h, 12 m3/h, 16 m3/h (examples present).
  • Power range shown on the page: values from 0.25 kW up to 7.5 kW (examples present: 0.25; 0.37; 0.55; 0.75; 1.1; 1.5; 2.2; 3; 4; 5.5; 7.5 kW).
  • File types available for models: 2D (.dxf), 3D (.stp), BIM (.rfa, .ifc), 2D previews (PNG) and 3D previews (viewer files).
  • Model identification format: alphanumeric codes (e.g. 2GS30T-C4S, 12GS40T/B-C4S, 1GSL02M-C4S, etc.).
