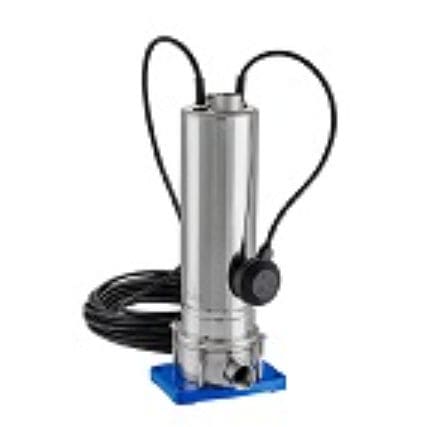

Water pump SCUBA DRYelectricmetalsubmersible
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Operation
- electric
- Material
- metal
- Other characteristics
- submersible
- Length
210 mm
(8.268 in)- Width
180 mm
(7.09 in)- Height
538 mm
(21.18 in)
Description
Overview
SCUBA Dry is a series of multistage submersible pumps available via the CAD center. The series offers multiple configurations (single- and multi-stage options) and a range of motor powers, with product versions available with or without a floating switch. The catalogue lists individual models, their product version, nominal power and number of stages.
Available models and main specifications
1SCD6/05/5 | Product version: Without floating switch | Nominal Power: 0.55 kW | Stages: 6
1SCD6/05/5 G | Product version: With floating switch | Nominal Power: 0.55 kW | Stages: 6
1SCD7/07/5 | Product version: Without floating switch | Nominal Power: 0.75 kW | Stages: 7
1SCD7/07/5 G | Product version: With floating switch | Nominal Power: 0.75 kW | Stages: 7
1SCD9/09/5 | Product version: Without floating switch | Nominal Power: 0.9 kW | Stages: 9
1SCD9/09/5 G | Product version: With floating switch | Nominal Power: 0.9 kW | Stages: 9
3SCD4/05/5 | Product version: Without floating switch | Nominal Power: 0.55 kW | Stages: 4
3SCD4/05/5 G | Product version: With floating switch | Nominal Power: 0.55 kW | Stages: 4
3SCD5/07/5 | Product version: Without floating switch | Nominal Power: 0.75 kW | Stages: 5
3SCD5/07/5 G | Product version: With floating switch | Nominal Power: 0.75 kW | Stages: 5
3SCD7/09/5 | Product version: Without floating switch | Nominal Power: 0.9 kW | Stages: 7
3SCD7/09/5 G | Product version: With floating switch | Nominal Power: 0.9 kW | Stages: 7
3SCD8/11/5 | Product version: Without floating switch | Nominal Power: 1.1 kW | Stages: 8
3SCD8/11/5 G | Product version: With floating switch | Nominal Power: 1.1 kW | Stages: 8
3SCD9/15/5 | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 9
3SCD9/15/5 G | Product version: With floating switch | Nominal Power: 1.5 kW | Stages: 9
3SCD9/22/5 T | Product version: Without floating switch | Nominal Power: 2.2 kW | Stages: 9
5SCD3/05/5 | Product version: Without floating switch | Nominal Power: 0.55 kW | Stages: 3
5SCD3/05/5 G | Product version: With floating switch | Nominal Power: 0.55 kW | Stages: 3
5SCD4/07/5 | Product version: Without floating switch | Nominal Power: 0.75 kW | Stages: 4
5SCD4/07/5 G | Product version: With floating switch | Nominal Power: 0.75 kW | Stages: 4
5SCD5/09/5 | Product version: Without floating switch | Nominal Power: 0.9 kW | Stages: 5
5SCD5/09/5 G | Product version: With floating switch | Nominal Power: 0.9 kW | Stages: 5
5SCD6/11/5 | Product version: Without floating switch | Nominal Power: 1.1 kW | Stages: 6
5SCD6/11/5 G | Product version: With floating switch | Nominal Power: 1.1 kW | Stages: 6
5SCD7/15/5 T | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 7
5SCD8/15/5 | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 8
5SCD8/15/5 G | Product version: With floating switch | Nominal Power: 1.5 kW | Stages: 8
8SCD2/05/5 | Product version: Without floating switch | Nominal Power: 0.55 kW | Stages: 2
8SCD2/05/5 G | Product version: With floating switch | Nominal Power: 0.55 kW | Stages: 2
8SCD3/09/5 | Product version: Without floating switch | Nominal Power: 0.9 kW | Stages: 3
8SCD3/09/5 G | Product version: With floating switch | Nominal Power: 0.9 kW | Stages: 3
8SCD4/11/5 T | Product version: Without floating switch | Nominal Power: 1.1 kW | Stages: 4
8SCD5/15/5 T | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 5
8SCD6/15/5 | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 6
8SCD6/15/5 G | Product version: With floating switch | Nominal Power: 1.5 kW | Stages: 6
Documents & formats available
Technical specifications
SCUBA Dry is a series of multistage submersible pumps available via the CAD center. The series offers multiple configurations (single- and multi-stage options) and a range of motor powers, with product versions available with or without a floating switch. The catalogue lists individual models, their product version, nominal power and number of stages.
Available models and main specifications
1SCD6/05/5 | Product version: Without floating switch | Nominal Power: 0.55 kW | Stages: 6
1SCD6/05/5 G | Product version: With floating switch | Nominal Power: 0.55 kW | Stages: 6
1SCD7/07/5 | Product version: Without floating switch | Nominal Power: 0.75 kW | Stages: 7
1SCD7/07/5 G | Product version: With floating switch | Nominal Power: 0.75 kW | Stages: 7
1SCD9/09/5 | Product version: Without floating switch | Nominal Power: 0.9 kW | Stages: 9
1SCD9/09/5 G | Product version: With floating switch | Nominal Power: 0.9 kW | Stages: 9
3SCD4/05/5 | Product version: Without floating switch | Nominal Power: 0.55 kW | Stages: 4
3SCD4/05/5 G | Product version: With floating switch | Nominal Power: 0.55 kW | Stages: 4
3SCD5/07/5 | Product version: Without floating switch | Nominal Power: 0.75 kW | Stages: 5
3SCD5/07/5 G | Product version: With floating switch | Nominal Power: 0.75 kW | Stages: 5
3SCD7/09/5 | Product version: Without floating switch | Nominal Power: 0.9 kW | Stages: 7
3SCD7/09/5 G | Product version: With floating switch | Nominal Power: 0.9 kW | Stages: 7
3SCD8/11/5 | Product version: Without floating switch | Nominal Power: 1.1 kW | Stages: 8
3SCD8/11/5 G | Product version: With floating switch | Nominal Power: 1.1 kW | Stages: 8
3SCD9/15/5 | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 9
3SCD9/15/5 G | Product version: With floating switch | Nominal Power: 1.5 kW | Stages: 9
3SCD9/22/5 T | Product version: Without floating switch | Nominal Power: 2.2 kW | Stages: 9
5SCD3/05/5 | Product version: Without floating switch | Nominal Power: 0.55 kW | Stages: 3
5SCD3/05/5 G | Product version: With floating switch | Nominal Power: 0.55 kW | Stages: 3
5SCD4/07/5 | Product version: Without floating switch | Nominal Power: 0.75 kW | Stages: 4
5SCD4/07/5 G | Product version: With floating switch | Nominal Power: 0.75 kW | Stages: 4
5SCD5/09/5 | Product version: Without floating switch | Nominal Power: 0.9 kW | Stages: 5
5SCD5/09/5 G | Product version: With floating switch | Nominal Power: 0.9 kW | Stages: 5
5SCD6/11/5 | Product version: Without floating switch | Nominal Power: 1.1 kW | Stages: 6
5SCD6/11/5 G | Product version: With floating switch | Nominal Power: 1.1 kW | Stages: 6
5SCD7/15/5 T | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 7
5SCD8/15/5 | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 8
5SCD8/15/5 G | Product version: With floating switch | Nominal Power: 1.5 kW | Stages: 8
8SCD2/05/5 | Product version: Without floating switch | Nominal Power: 0.55 kW | Stages: 2
8SCD2/05/5 G | Product version: With floating switch | Nominal Power: 0.55 kW | Stages: 2
8SCD3/09/5 | Product version: Without floating switch | Nominal Power: 0.9 kW | Stages: 3
8SCD3/09/5 G | Product version: With floating switch | Nominal Power: 0.9 kW | Stages: 3
8SCD4/11/5 T | Product version: Without floating switch | Nominal Power: 1.1 kW | Stages: 4
8SCD5/15/5 T | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 5
8SCD6/15/5 | Product version: Without floating switch | Nominal Power: 1.5 kW | Stages: 6
8SCD6/15/5 G | Product version: With floating switch | Nominal Power: 1.5 kW | Stages: 6
Documents & formats available
- 2D drawings: DXF (.dxf) and WMF (.wmf)
- 3D models: STEP / STP formats
- BIM: Revit (.rfa) and IFC (.ifc) packages
- 2D preview and 3D preview available for individual models
Technical specifications
- Series name: SCUBA Dry
- Product versions: With floating switch and Without floating switch
- Nominal power: ranges observed from 0.55 kW up to 2.2 kW across models
- Stages: configurations from 2 to 9 stages depending on model
- Model identification: alphanumeric codes (examples: 1SCD6/05/5, 3SCD4/05/5, 5SCD6/11/5, 8SCD6/15/5 etc.)
- CAD/BIM deliverables: 2D (DXF, WMF), 3D (STEP/STP), BIM (RFA, IFC), plus PNG previews and interactive 3D previews
Catalogs
No catalogs are available for this product.
