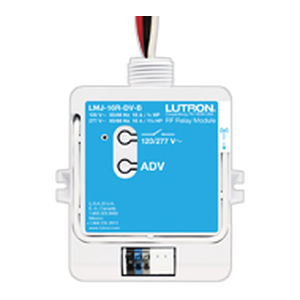

Home automation system control module LMK-16R-DV-B
lightingradioDIN rail

home automation system control module
home automation system control module
Add to favorites
Compare this product


Characteristics

Type
for home automation systems, lighting
Network
radio
Installation
DIN rail
Location
indoor
Market
commercial, home

Description

Lutron RA2 Select components come together in a variety of options to accommodate any space. RF Relay Module with Softswitch Compatible with RA2 Select, RadioRA 2, and HomeWorks systems The RF relay module with Softswitch is a radio frequency (RF) device that uses Lutron patented Softswitch technology to control up to 16 A of general-purpose loads based on input from RA2 Select, RadioRA 2, and HomeWorks systems. • Lutron patented Softswitch technology prevents arcing of relay contacts, extending product lifetime. • Various operating voltages available—refer to Models chart below for details on voltage requirements. • Capable of switching 16 A of general-purpose loads. • Utilizes Lutron Clear Connect RF technology—refer to Models chart below for frequency band data and Lutron system compatibility. • Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening. • Complies with requirements for use in a compartment handling environmental air (plenum) per NEC® 2011 300.22(C)(3) (LMJ- model only). Specification Power 120/277 V~ 50/60 Hz 16 A 0.5 HP at 120 V~ 1.5 HP at 277 V~ (LMJ- model) 220–240 V~ 50/60 Hz 16 A motor: 6 A (LMK-, LMM-, LMN-, LMQ- models) Typical Power Consumption < 1.0 W Typical power test conditions: all loads off, top LED on Regulatory Approvals UL®, UL 2043 Plenum Rated, FCC Approved. Complies with the limits for a Class B device, pursuant to Part 15 of the FCC rules: CSA, IC, NOM, ANATEL (LMJ- model) CE, TRA, CITC (LMK- model) WPC (LMN- model) Environment Ambient operating temperature: 32 °F to 131 °F (0 °C to 55 °C) Ambient operating humidity: 0% to 90% humidity, non-condensing. Indoor use only.
