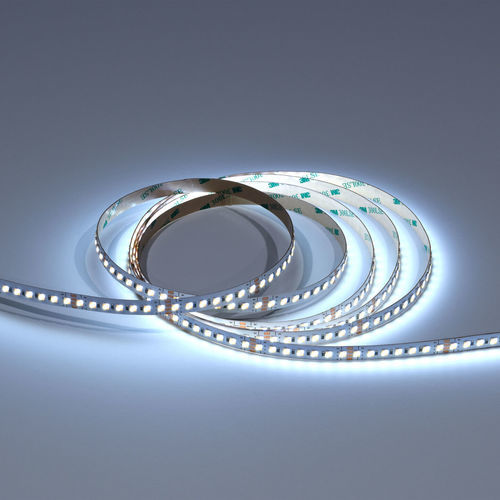

Flexible LED light strip RANIA TAPE

Overview
The Rania LED tape light delivers a three-channel natural white spectrum for accent and cove lighting. It transitions smoothly from warm incandescent glow to bright afternoon sun (1,800K–5,500K) and offers high color fidelity for accurate material and finish appearance. Available in High-Output and Long Run variants, the 10 mm tape is field-cuttable every 2.2 in (50 mm) for flexible integration in low-profile and curved architectural applications. The tape, power supply, and Multi-Channel Wireless Controller are engineered to simplify installation and commissioning and to integrate with Lutron wireless control systems for location-aware daylight tracking.

Highlights

• 3-channel natural light engine reproduces daylight feeling more precisely than 2-channel tunable white or warm-dim solutions
• Adjustable CCT range from 1,800K to 5,500K for warm-to-cool transitions
• 90+ CRI delivers vivid rendering of colors and finishes across the CCT range
• 10 mm width; field-cuttable every 2.2 in (50 mm) with 4-pin wire-to-tape connectors for straight and curved runs
• Available reels: High-Output (16.4 ft, 98.4 ft) and Long Run (32.8 ft, 98.4 ft)
• Multi-Channel Wireless Controller supports up to 16.4 ft (HO) or 32.8 ft (LR) with 0.1%–100% dimming
• Designed for integration with Lutron Clear Connect Type X wireless systems

Light Engine
3-channel natural light spectrum (1,800K–5,500K) with high color fidelity

Wireless Control
Clear Connect – Type X wireless communication compatible with Lutron systems

Dimensions
Width: 0.4 in (10 mm); available reel lengths: 16.4 ft, 32.8 ft, 98.4 ft; field-cuttable every 2.2 in (50 mm)

System Compatibility

• HomeWorks
• Athena
• myRoom XC

Performance Specifications
Light Engine: 3-channel natural light
CCT Range: 1,800K–5,500K
Color Rendering: 90+ CRI (2,700K–5,000K)
Rated Life: 50,000 hours (L70)
Dimming Range: 0.1%–100%
Delivered Lumens: HO: 350 lm/ft; LR: 200 lm/ft

Control Specifications
Control Protocol: Wireless RF / Clear Connect‑Type X

Electrical Specifications
Power Consumption: 96 W
Voltage: 120 V~ / 277 V~ 50/60 Hz
Current: 800 mA

Mechanical Specifications
Installation options: terminal block or flying leads

Certifications
cULus Listed (USA & Canada); FCC Part 15 Class B; ICES‑005 compliant

Warranty
5 year limited warranty

Technical specifications

• Light Engine: 3-channel natural white
• CCT Range: 1,800K–5,500K
• Color Rendering: 90+ CRI (2,700K–5,000K)
• Rated Life: 50,000 hours (L70)
• Dimming Range: 0.1%–100%
• Delivered Lumens: HO 350 lm/ft; LR 200 lm/ft
• Power Consumption: 96 W
• Voltage: 120 V~ / 277 V~ (50/60 Hz)
• Current: 800 mA
• Width: 0.4 in (10 mm); field-cuttable every 2.2 in (50 mm)
• Available lengths: 16.4 ft, 32.8 ft, 98.4 ft
• Control: Clear Connect–Type X wireless (compatible with HomeWorks, Athena, myRoom XC)
• Installation: terminal block or flying leads
• Certifications: cULus, FCC Part 15 Class B, ICES‑005
• Warranty: 5 year limited warranty
