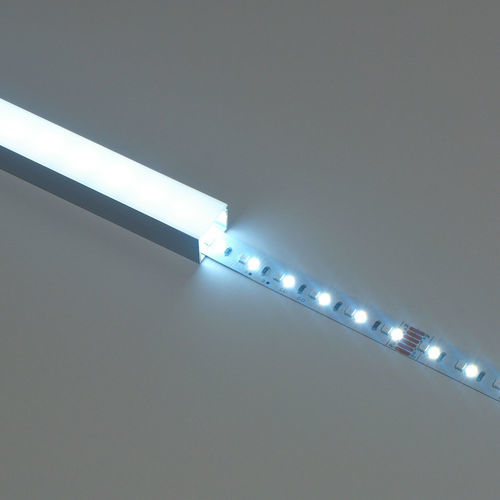

Dimmable flexible LED light strip LUMARIS TAPE

Overview
Intelligent lighting starts with Lumaris, combining vibrant RGB color with tunable white light in a single tape solution. This 5-channel LED tape light offers the complete spectrum — from saturated colors for dramatic accent effects to precision-tuned tunable white light (1,800K–4,000K) for everyday illumination. Transform spaces with 16.7 million color options using intuitive scene selection or app-based color controls, then transition seamlessly to high-quality white light with 90+ CRI rendering and flicker-free dimming down to 0.1%. Field-cuttable every 4 inches with pre-soldered wires for easy connection; can run up to 32.8 feet from a single Multi-Channel Wireless Controller. Lumaris is designed to work with Lutron HomeWorks, RadioRA 3, Athena, and myRoom XC wireless control systems for advanced lighting behaviors.

Highlights

• 5-channel engine produces full RGB color palette plus tunable white light (1,800K–4,000K) in one tape solution
• Delivers 16.7 million colors for creative accent lighting or high-quality white light with consistent 90+ CRI
• 200 lumens per foot of tunable white illumination suitable for both functional illumination and dramatic color effects
• Field-cuttable every 4 inches with pre-soldered 22 AWG wires for reliable connections
• Choose from a variety of aluminum extrusion profiles to fit architectural conditions
• Multi-Channel Wireless Controller supports up to 32.8 feet of tape
• Designed to work with Lutron wireless control systems via Multi-Channel Wireless Controller

Light Engine
5-channel RGB + tunable white light / 1,800K–4,000K (white) / 90+ CRI

Wireless Control
Clear Connect – Type X wireless communication (Lutron Clear Connect–Type X)

Dimensions
Overall lengths available: 16.4 - 98.4 ft (5–30 m) long; Cross-section thickness: 0.47 in (12 mm); Field cuttable to 4 in (101.6 mm) segments

System Compatibility

• HomeWorks
• RadioRA 3
• Athena
• myRoom XC

Performance Specifications
Light Engine: 5-channel RGB + Tunable White Light
CCT Range: 1,800K–4,000K
Saturated Colors: 16.7 million colors
Color Rendering: 90+ CRI from 1,800K to 4,000K
Rated Life: 50,000 hours
Dimming Range: 0.1%–100%
Delivered Lumens: 200 lumens per foot (white light)

Control Specifications
Control Protocol: Wireless RF/CCX (Lutron Clear Connect–Type X)

Electrical Specifications
Power Consumption: 96 W
Voltage: 120 V~ / 277 V~ 50/60 Hz
Current: 800 mA

Mechanical Specifications
Installation Options: Terminal block; Flying leads

Certifications & Warranty
Environmental / Listings: cULus Listed for USA and Canada; FCC Part 15 Class B compliant; ICES-005 compliant
Certifications: Meets UL 8750 / CSA C22.2 No. 250.13-14 (LED equipment for use in lighting products)
Warranty: 5 year limited warranty

caractéristiques / spécifications techniques

• Engine: 5-channel RGB + Tunable White
• CCT: 1,800K–4,000K
• Color Options: 16.7 million colors
• CRI: 90+ (white light)
• Delivered light: 200 lm/ft (white)
• Useful life: 50,000 hours (L70)
• Dimming: 0.1%–100% (flicker-free)
• Field cuttable: every 4 in (101.6 mm)
• Max run per controller: up to 32.8 ft
• Control: Lutron Clear Connect–Type X wireless; native integration with Lutron systems
• Electrical: 96 W, 120/277 V~, 800 mA
• Dimensions: 16.4–98.4 ft lengths; 0.47 in (12 mm) width
