Foam construction panel WH F
for floorinsulating

foam construction panel
foam construction panel
foam construction panel
foam construction panel
Add to favorites
Compare this product


Characteristics

Material
foam
Applications
for floor
Other characteristics
insulating
Thickness

30 mm, 50 mm
(1.2 in, 2 in)

Description

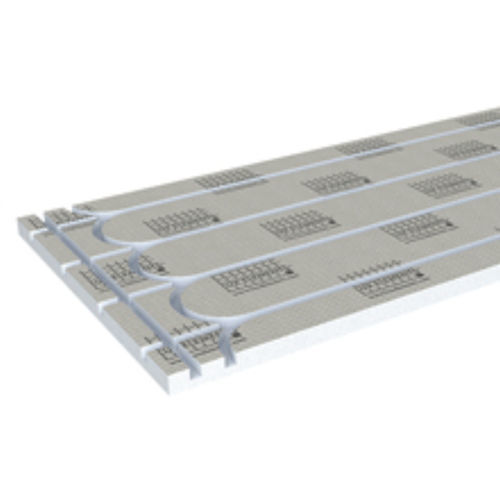

Hard foam support element with milling for installing underfloor heating pipes under ceramic surfaces Installation and insulating element in one Low installation heights – ideal for renovations Quick and easy installation No screed necessary Short drying times during renovation Rapid heating of the room due to direct heat dissipation into the ceramic top covering Suitable for water heating with pipe diameter 16 mm Simple to process for adaptation to room situation FLOOR-WH F is suitable for use on either wooden floors or mineral substrates such as concrete or screed. Using FLOOR-WH F 30 the fixing adhesive must always be applied over the full surface, FLOOR-WH F 50 can also be placed on dots (dots spacing ≤ 200 mm). For wooden floors, full coverage adhesion is always required.
