For every cabin model
Consisting of multi-part floor element, multi-part substrate element and horizontal floor drain support

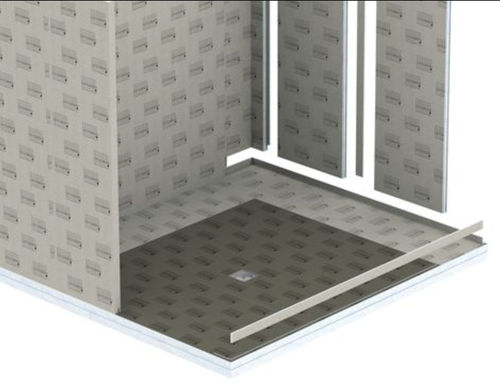

MODUL-ROOM-L-BO.P floor construction, consisting of multi-part floor element, multi-part substrate element and floor drain support DN 50 horizontal incl. odour trap
Floor element
Height: 30/50 mm
Factory sealed gradient area (with prefabricated four-sided gradient) with built-in and sealed floor drain fitting frame
Bench and wall area without gradient
Base construction with circumferential milling and tongue for simple wall mounting
Secure click system for fastening the drain connection fitting
Substrate element
Height: 55 mm
Simple and fast height compensation
Suitable for integrating the drainage technology
Grate
standard- or design grate
Grate fitting frame
universal height adjustment to the
covering thickness
Floor element
factory-sealed gradient area with built-in and sealed floor drain fitting frame
Floor drain support
DN 50 horizontal
Substrate element
simple and fast height compensation
All LUX ELEMENTS®-MODUL-ROOM-BO.P floor elements are equipped with a second drainage level
The height of the floor element is 30/50 mm, the substrate element is 55 mm high.
DN 50 horizontal
With odour trap
Drainage capacity (with standard grate): 1,0 l/s (in accordance with DIN EN 1253 [l/s])
Accessories (optional)
Various grate variants with grate fitting frame as well as other accessories
