Low temperature collector OPEN LT

corrosion-resistant

Product overview

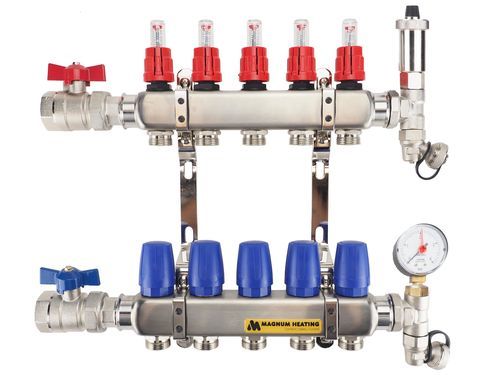

The MAGNUM Premium Stainless Steel Open LT manifold is designed for low-temperature heating installations. Its body is manufactured in stainless steel 4301 and the unit is supplied ready for installation with 1" ball valves on the primary, an automatic air vent, two drain valves and a pressure gauge.

Application

• Central heating boilers — suitable
• Heat pumps — suitable
• Solar thermal systems (with buffer tank) — suitable
• Pellet stoves — suitable
• District heating — suitable

Available versions / Dimensions

• W32002 - MAGNUM Premium Stainless Steel Open LT 2 Groups - 270 x 380 x 100 mm
• W32003 - MAGNUM Premium Stainless Steel Open LT 3 Groups - 320 x 380 x 100 mm
• W32004 - MAGNUM Premium Stainless Steel Open LT 4 Groups - 370 x 380 x 100 mm
• W32005 - MAGNUM Premium Stainless Steel Open LT 5 Groups - 420 x 380 x 100 mm
• W32006 - MAGNUM Premium Stainless Steel Open LT 6 Groups - 470 x 380 x 100 mm
• W32007 - MAGNUM Premium Stainless Steel Open LT 7 Groups - 520 x 380 x 100 mm
• W32008 - MAGNUM Premium Stainless Steel Open LT 8 Groups - 570 x 380 x 100 mm
• W32009 - MAGNUM Premium Stainless Steel Open LT 9 Groups - 620 x 380 x 100 mm
• W32010 - MAGNUM Premium Stainless Steel Open LT 10 Groups - 670 x 380 x 100 mm
• W32011 - MAGNUM Premium Stainless Steel Open LT 11 Groups - 720 x 380 x 100 mm
• W32012 - MAGNUM Premium Stainless Steel Open LT 12 Groups - 770 x 380 x 100 mm
• W32013 - MAGNUM Premium Stainless Steel Open LT 13 Groups - 820 x 380 x 100 mm
• W32014 - MAGNUM Premium Stainless Steel Open LT 14 Groups - 870 x 380 x 100 mm
• W32015 - MAGNUM Premium Stainless Steel Open LT 15 Groups - 955 x 365 x 100 mm

Specifications

• Primary valve: 1" ball valves (seal-capable)
• Thermostat on inlet: not included
• Pump: not included
• Flow meter on groups: included
• Thermometer: not included
• Pressure gauge: included
• Automatic air vent: included
• Valve on return: included
• CE inspection: yes

Technical details

• Manifold body: stainless steel 4301
• Thermostatic group valves M30x1.5 compatible with MAGNUM actuators
• Groups fitted with professional flow meters, range 0-2.5 L/min
• Group connections compatible with 3/4" Eurocones
• Primary connection 1" sealable via ball valves
• Supplied with mounting material as standard
• 1" ball valve with red handle (supply)
• Camflux flow meter 2.5 L/min - 1/2"
• Pressure gauge 40 mm axial 1/8"
• Automatic air vent nickel-plated 1/2" with O-ring
• 1" ball valve with blue handle (return)

Package content

• Factory test report
• Installation instructions
• Warranty certificate
• MAGNUM Premium Stainless Steel Open LT manifold

Warranty
MAGNUM Premium Stainless Steel Open LT: 10 years on the manifold body, 2 years on fittings and accessories.

Technical characteristics / specifications

• Material: stainless steel 4301 (manifold body)
• Primary connection: 1" (sealable by 1" ball valves)
• Group connections: suitable for 3/4" Eurocones
• Included fittings: 1" ball valves (red and blue handles), automatic air vent 1/2", pressure gauge 40 mm axial 1/8", flow meter Camflux 2.5 L/min (1/2")
• Flow meter range: 0-2.5 L/min
• Mounting material: supplied as standard
• Standards / Inspection: CE
• Warranty: 10 years on body, 2 years on fittings
