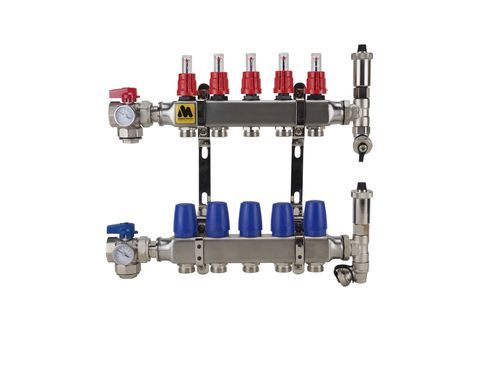

Low temperature collector E32

corrosion-resistant

Description
MAGNUM Premium E32 INOX Open LT manifold suitable for low and high temperature applications. Manufactured in stainless steel 4301 (AISI304). Designed for both primary heating and auxiliary support. Independent groups with shut-off valve and 3/4" eurocone connections. Includes: 1 flowmeter per group, 2 air vents, 2 thermometers, mounting supports, screws and plugs.

Models (Art.nr. / Description / Dimensions)
E32002 | MAGNUM Premium E32 INOX Open LT manifold 2G | 240 x 365 x 100 mm
E32003 | MAGNUM Premium E32 INOX Open LT manifold 3G | 320 x 365 x 100 mm
E32004 | MAGNUM Premium E32 INOX Open LT manifold 4G | 350 x 365 x 100 mm
E32005 | MAGNUM Premium E32 INOX Open LT manifold 5G | 420 x 365 x 100 mm
E32006 | MAGNUM Premium E32 INOX Open LT manifold 6G | 470 x 365 x 100 mm
E32007 | MAGNUM Premium E32 INOX Open LT manifold 7G | 515 x 365 x 100 mm
E32008 | MAGNUM Premium E32 INOX Open LT manifold 8G | 570 x 365 x 100 mm
E32009 | MAGNUM Premium E32 INOX Open LT manifold 9G | 625 x 365 x 100 mm
E32010 | MAGNUM Premium E32 INOX Open LT manifold 10G | 680 x 365 x 100 mm
E32011 | MAGNUM Premium E32 INOX Open LT manifold 11G | 735 x 365 x 100 mm
E32012 | MAGNUM Premium E32 INOX Open LT manifold 12G | 790 x 365 x 100 mm
E32013 | MAGNUM Premium E32 INOX Open LT manifold 13G | 845 x 365 x 100 mm
E32014 | MAGNUM Premium E32 INOX Open LT manifold 14G | 900 x 365 x 100 mm
E32015 | MAGNUM Premium E32 INOX Open LT manifold 15G | 955 x 365 x 100 mm

Suitable energy source
Boiler | V
Heat pump | V
Solar energy (with buffer tank) | V
Pellet stove | V
District heating | V

Features
Shut-off valve on supply: V
Thermostat on supply: V
Pump: X
Flowmeter: V
Thermometer on return: V
Pressure gauge: V
Air vent: V
Return valve: V
RTL valve on return: X
Mixing quantity in control valve: X
Check valve between return and supply: X
Inspection: CE

Technical details

• The manifold body is manufactured in stainless steel 4301 (AISI304).
• Thermostatic valve groups M30X 1.5 for MAGNUM actuators.
• Groups with professional flowmeter with range 0–2.5 L/min.
• Group connections for 3/4" eurocone.
• Primary circuit connection 1" lockable via ball valves with thermometer.
• The manifold includes mounting system (supports, screws and plugs).
• Manifold tested to 6 bar; includes pressure test, instruction manual and warranty.
• Packaging contents: Assembly report; Installation instructions; Warranty card; MAGNUM Premium E32 INOX Open LT.
• Warranty: 10 years on the manifold body and 2 years on accessories.

Characteristics / Technical specifications

• Body material: Stainless steel 4301 (AISI304).
• Thermostatic valves M30X 1.5 compatible with MAGNUM actuators.
• Professional flowmeter per group (0–2.5 L/min).
• Group connections: 3/4" eurocone.
• Primary connection: 1" with ball valves and thermometer.
• Test pressure: 6 bar; includes pressure test and documentation.
• Includes air vents, thermometers, mounting supports and assembly hardware.
