Thermal insulation MAGNUM

plasticrollinterior

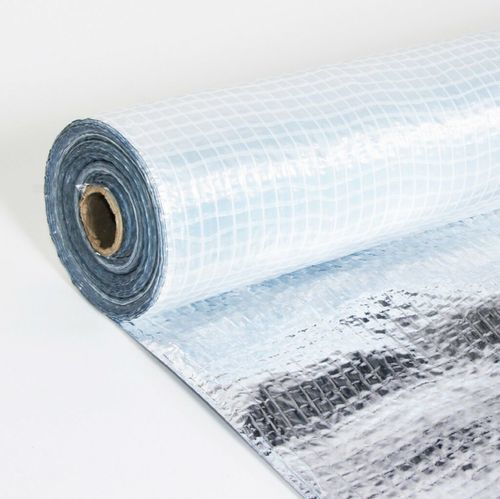

Aluminium reflection foil consists of a plastic webbing and an aluminium top layer. The foil reflects heat to the screed and displaces cold via the subfloor, making it a highly effective heat conductor. The foil is designed for direct application under underfloor heating tubes and can be easily cut to size.

Characteristics

• Area: 30 m² – 75 m²
• Length: 20 m – 50 m
• Width: 1.50 m
• Thickness: 0.90 mm
• Weight per area: 90 ± 25% g/m²
• Fire resistance: Class E
• Tear resistance: > 100 N
• Tensile strength (length): > 220 N/50mm
• Tensile strength (width): > 150 N/50mm
• Elongation at break (length): > 12 %
• Elongation at break (width): > 7 %
• Water vapour transmission: 50 ± 30 m
• Temperature range: -30°C / 70°C

Technical details

• Suitable for MAGNUM hydronic systems
• Delivery content: Roll of MAGNUM reflective aluminium foil
• Installation: Place directly beneath underfloor heating pipes
• Warranty: 2 years
