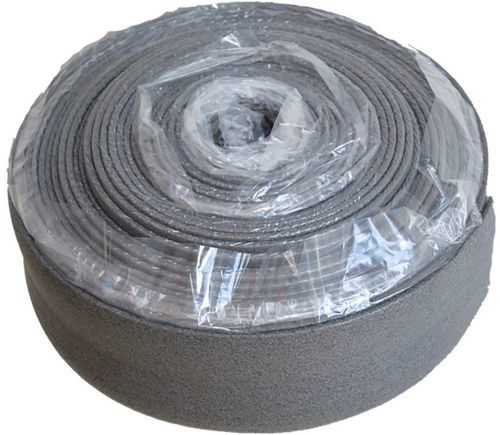

PE expansion joint MAGNUM

foamfor expansion jointsfor flooring

Edge insulation should be applied when floor heating is used. This form of insulation prevents unwanted heat loss and absorbs the expansion and contraction of the floor. The edge insulation will also ensure that no cold bridges are formed.

Application
Suitable for any type of underfloor heating system.

Presentation (items and dimensions)
Art.nr. | Description | Dimensions
W90111 | Perimeter strip with skirt | 25 m x 15 cm x 8 mm
W90110E | Self-adhesive perimeter strip with skirt | 50 m x 15 cm x 7 mm

Characteristics W90111 (without adhesive)
Length: 25 m | Thickness: 8 mm ± 1 mm | Width: 150 mm ± 5 mm | Material: PE – foam | Density: 18 kg/m3 ± 5 kg/m3 | Packaging: durable plastic film | Color: Grey | Fire class: EN 13501-1:2010 | Warranty: 2 years

Characteristics W90110E (with adhesive)
Length: 50 m | Thickness: 7 mm ± 1 mm | Width: 150 mm ± 5 mm | Material: PE – foam | Density: 20 kg/m3 ± 5 kg/m3 | Packaging: durable plastic film | Color: White | Tolerance: ± 5 | Acoustic insulation: 20 dB | Standard: UNE-EN 1609:1997 | Operating temperature: -80 / +80 ºC | Warranty: 2 years | Marking: CE

Characteristics / Technical specifications

• Material: polyethylene foam (PE)
• Versions: with skirt (W90111 and W90110E), self-adhesive option (W90110E)
• Available lengths: 25 m (W90111), 50 m (W90110E)
• Standard width: 150 mm ± 5 mm
• Thickness: 8 mm ± 1 mm (W90111); 7 mm ± 1 mm (W90110E)
• Density: approx. 18 kg/m3 (W90111) and 20 kg/m3 (W90110E), ± 5 kg/m3
• Colors: grey (W90111), white (W90110E)
• Packaging: durable plastic film
• Acoustic properties (W90110E): 20 dB insulation
• Operating thermal range: -80 ºC to +80 ºC (W90110E)
• Classification and standards: EN 13501-1:2010 (fire class), UNE-EN 1609:1997 (associated standard)
• Marking / inspection: CE (depending on version)
• Warranty: 2 years
