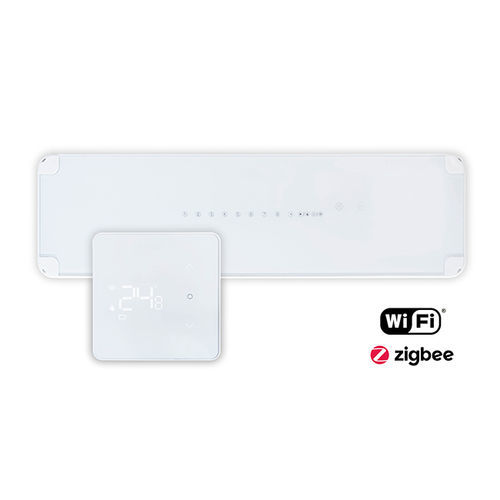

Electronic thermostat H128

digitalsmartprogrammable

Description
Wireless control system for hydraulic underfloor heating based on the H128 series. The H128-CC kit includes the wireless central unit and a WiFi gateway for local and remote control via app (iOS/Android). The H128-T thermostat is programmable and additional H128-T units can be added to control multiple rooms/zones.

Wireless connection
RF 868 MHz communication between thermostats and central unit. The gateway uses Zigbee to communicate and connects to a 2.4 GHz WiFi router for remote control and voice assistant integration (Google Assistant and Amazon Alexa).

H128 Central unit (H128-CC)
The H128-CC receives RF signals from thermostats and issues open/close commands to thermal actuators. Supports up to 8 thermostats per central unit and up to 64 actuators in total (max 10 actuators per zone).

Cascade extension
Up to 8 H128-CC central units can be cascaded using a wired link. When cascaded, additional units synchronize with the primary unit and the boiler/heat pump on/off signal is sent from the primary unit.

Items
W82000 — H128-CC WiFi central unit kit + gateway (Polar white – RAL 9010)
W82001 — H128-T wireless WiFi thermostat (Polar white – RAL 9010)
W82002 — H128-CC WiFi central unit kit + gateway (Graphite black – RAL 9011)
W82004 — H128-T wireless WiFi thermostat (Graphite black – RAL 9011)

Specifications
Type — Wireless control system with WiFi. Suitable for — Hydraulic systems. Control — Touchscreen and via app. Sensors — Ambient sensor and floor sensor. Voltage — 230 V 50/60 Hz. Max load — 10 A / 230 V. Temperature range — +5 °C to +40 °C. Protection — IP21 (thermostat) / IP40 (central unit). WiFi — 2.4 GHz. App — iOS & Android. Voice assistant — Google Assistant and Amazon Alexa. Programmable — Up to 3 periods per day.

Technical details
Central unit H128-CC
Power supply: 100–240 VAC 50/60 Hz. Communication: RF 868 MHz. Wireless range: up to 100 m (depending on conditions). Operating temperature: 0–50 °C. Humidity: 0–80% RH (non-condensing). Dimensions: 298 x 88 x 64 mm. IP rating: IP40.

Thermostat H128-T
Power: 2 x AA batteries. Estimated battery life: approx. 1 year. Operating range: 0–50 °C; Humidity: 0–80% RH. Display range: 0–50 °C, resolution 0.1 °C. Dimensions: 100 x 100 x 19.6 mm. IP rating: IP21.

Warranty
2 years on electromechanical parts.

features / technical specifications

• Model / series: H128
• Central unit: H128-CC (RF 868 MHz)
• Thermostat: H128-T (WiFi / Zigbee / RF)
• Connectivity: RF 868 MHz; Zigbee; WiFi 2.4 GHz
• App compatible: iOS and Android
• Voice assistants: Google Assistant and Amazon Alexa
• Central unit power: 100–240 VAC 50/60 Hz
• Thermostat power: 2 x AA (≈1 year)
• Relay max load: 10 A / 230 V
• Operating temperature range: 0–50 °C
• Protection: IP40 (central unit), IP21 (thermostat)
• Central unit dimensions: 298 x 88 x 64 mm
• Thermostat dimensions: 100 x 100 x 19.6 mm
• Wireless range: up to 100 m
• Capacity per central unit: up to 8 thermostats and 64 actuators (max 10 per zone)
• Programmable function: up to 3 periods per day
