Low temperature collector OPEN LT

Product description

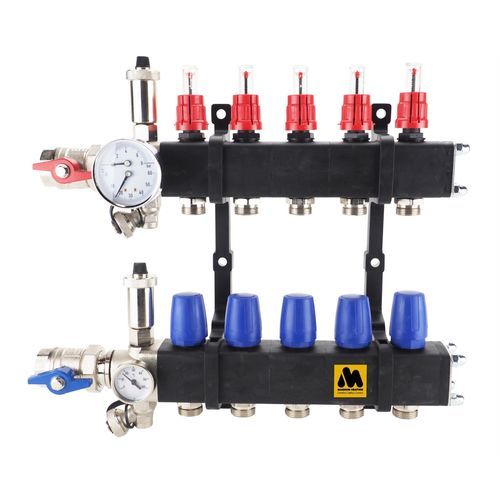

The MAGNUM Premium Composite Open LT manifold consists of individual composite elements connected by threaded rods. Elements are manufactured from glass-fibre reinforced polyamide composite suitable for high and low temperatures. The double-walled construction creates an insulating layer that reduces condensation, making the manifold suitable for both heating and cooling applications. This manifold is commonly used with heat pumps. Standard equipment includes 1" ball valves, 2 automatic air vents, 2 filler/drain valves, a bi-metal thermometer and a thermo-manometer.

Available models / Dimensions
Art.nr. | Description | Dimensions
W50002 | MAGNUM Premium Composite Open LT 2 Groups | 265 x 375 x 125 mm
W50003 | MAGNUM Premium Composite Open LT 3 Groups | 320 x 375 x 125 mm
W50004 | MAGNUM Premium Composite Open LT 4 Groups | 375 x 375 x 125 mm
W50005 | MAGNUM Premium Composite Open LT 5 Groups | 430 x 375 x 125 mm
W50006 | MAGNUM Premium Composite Open LT 6 Groups | 485 x 375 x 125 mm
W50007 | MAGNUM Premium Composite Open LT 7 Groups | 540 x 375 x 125 mm
W50008 | MAGNUM Premium Composite Open LT 8 Groups | 595 x 375 x 125 mm
W50009 | MAGNUM Premium Composite Open LT 9 Groups | 650 x 375 x 125 mm
W50010 | MAGNUM Premium Composite Open LT 10 Groups | 705 x 375 x 125 mm
W50011 | MAGNUM Premium Composite Open LT 11 Groups | 760 x 375 x 125 mm
W50012 | MAGNUM Premium Composite Open LT 12 Groups | 815 x 375 x 125 mm
W50013 | MAGNUM Premium Composite Open LT 13 Groups | 870 x 375 x 125 mm
W50014 | MAGNUM Premium Composite Open LT 14 Groups | 925 x 375 x 125 mm
W50015 | MAGNUM Premium Composite Open LT 15 Groups | 980 x 375 x 125 mm

Application
Central heating boiler | V
Heat pump | V
Solar heat (with buffer tank) | V
Pellet stove | V
District heating | V

Specifications (standard fitted items)
Valve on inlet | V
Thermostat on inlet | X
Pump | X
Flow meter | V
Thermometer | V
Pressure gauge | V
Air vent | V
Valve on return | V
RTL valve on return | X
In control valve mixing quantity | X
Stop valve between supply and return | X
Inspection | CE

Technical details

• Constructed from separate composite elements; assembled with threaded rods; 10-year guarantee on body
• Thermostatic group valves M30x1.5 suitable for MAGNUM actuators
• Groups fitted with professional flow meters, range 0–2.5 L/min (Camflux)
• Group connections suitable for 3/4" Eurocones
• Primary connection 1" sealable by ball valves
• Manifold supplied with mounting material as standard
• Ball valve 1" with red handle (supply)
• Flowmeter Camflux 2.5 L/min – 1/2"
• Bi-metal thermometer included
• Automatic air vent nickel-plated 1/2" with O-ring
• Ball valve 1" with blue handle (return)

Package content

• Press report
• Installation instructions
• Warranty certificate
• MAGNUM Premium Composite Open LT manifold

Warranty
MAGNUM Premium Composite Open LT: 10 years on manifold body, 2 years on fittings.

Characteristics / technical specifications

• Material: glass-fibre reinforced polyamide composite
• Double-walled construction creating an insulating layer (reduces condensation)
• Suitable for heating and cooling applications; commonly used with heat pumps
• Standard fittings: 1" ball valves (supply & return), 2 automatic air vents, 2 filler/drain valves, bi-metal thermometer, thermo-manometer
• Flow meters on groups: professional Camflux units, range 0–2.5 L/min
• Group connections: suitable for 3/4" Eurocones
• Primary connection: 1" (sealable with ball valves)
• Mounting material included
• Warranty: 10 years on manifold body, 2 years on fittings
