Corrosion-resistant collector BASIC

Overview

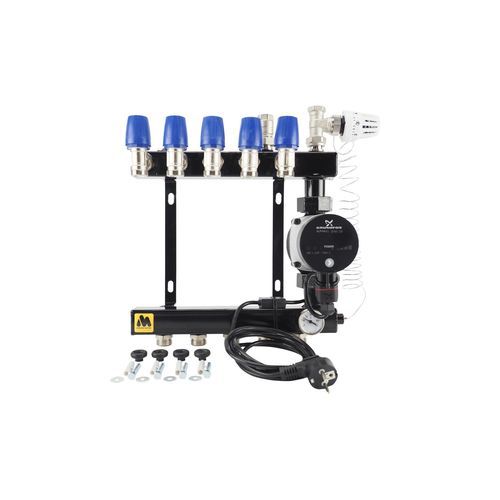

The MAGNUM Basic Steel is a simple, yet very robust control unit that comes standard with an energy-efficient pump with energy label A. This pump is a constant pressure (modulating) pump that adjusts when groups are closed off by actuators. The manifold is hydraulically neutral, meaning the pump of this manifold has no influence on the primary circuit. The manifold is pressure tested at 6 bar and is supplied with a press report, clear installation instructions and a warranty card.

Variants (Art.nr. | Description | Dimensions)
W40001 | MAGNUM Basic Steel 1 Group incl. A-Label Pump | 190 x 390 x 145 mm
W40002 | MAGNUM Basic Steel 2 Groups incl. A-Label Pump | 190 x 390 x 145 mm
W40003 | MAGNUM Basic Steel 3 Groups incl. A-Label Pump | 245 x 390 x 145 mm
W40004 | MAGNUM Basic Steel 4 Groups incl. A-Label Pump | 300 x 390 x 145 mm
W40005 | MAGNUM Basic Steel 5 Groups incl. A-Label Pump | 355 x 390 x 145 mm
W40006 | MAGNUM Basic Steel 6 Groups incl. A-Label Pump | 410 x 390 x 145 mm
W40007 | MAGNUM Basic Steel 7 Groups incl. A-Label Pump | 465 x 390 x 145 mm
W40008 | MAGNUM Basic Steel 8 Groups incl. A-Label Pump | 520 x 390 x 145 mm
W40009 | MAGNUM Basic Steel 9 Groups incl. A-Label Pump | 575 x 390 x 145 mm
W40010 | MAGNUM Basic Steel 10 Groups incl. A-Label Pump | 630 x 390 x 145 mm

Application
Central heating boiler | V (suitable)
Heat pump | X (not suitable)
Solar heat (with buffer tank) | X (not suitable)
Pellet stove | X (not suitable)
District heating | X (not suitable)

Specifications (features table)
Valve on inlet | V (included)
Thermostat on inlet | V (included)
Pump | V (included, A-rated)
Flow meter | X (not included)
Thermometer | V (included)
Pressure gauge | X (not included)
Air vent | V (included)
Valve on return | V (included)
RTL valve on return | X (not included)
In control valve mixing quantity | X (not included)
Stop valve between supply and return | X (not included)
Certification | CE

Technical details

• The body of this manifold is galvanised and epoxy-coated in black RAL 9011
• Equipped with thermostat knob, thermometer, maximum safety device and air vent
• Equipped as standard with an energy-efficient A-rated pump
• Double adjustable thermostatic group valves suitable for MAGNUM actuators
• Group connections suitable for 3/4" Euroconus
• Primary connection 1/2" (from 8 groups 3/4")
• Distributor is supplied with mounting material as standard
• Thermostatically prepared valve
• Thermostat knob with cap valve in immersion tube
• Bimetal thermometer incl. immersion tube
• Air vent 1/2"
• Ball valve 1/2" 2-piece blue

Package content

• Press report
• Installation instructions
• Warranty certificate
• MAGNUM Basic Steel unit

Warranty
MAGNUM Basic Steel: 5 years for the body, 2 years for fittings.

Characteristics / technical specifications

• Model name: MAGNUM Basic Steel
• Body material and finish: galvanised body, epoxy-coated black RAL 9011
• Pump: energy-efficient A-rated, constant pressure (modulating)
• Hydraulic behaviour: hydraulically neutral manifold
• Pressure test: 6 bar (supplied with press report)
• Group connections: suitable for 3/4" Euroconus
• Primary connection: 1/2" (3/4" from 8 groups)
• Included instrumentation: thermostat knob, thermometer, air vent, maximum safety device
• Mounting: supplied with mounting material
• Certifications: CE
