Low temperature collector ECOFLOW

Description

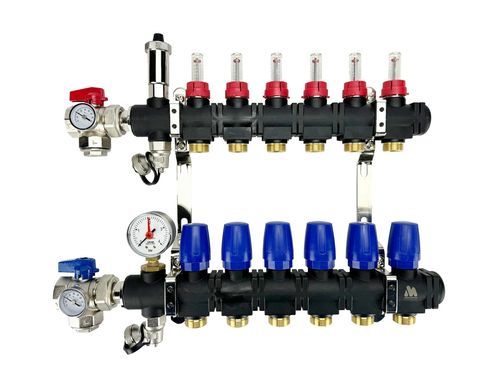

The EcoFlow MAGNUM single-wall synthetic manifold is manufactured from glass-fiber-reinforced polyamide. It consists of fully preformed synthetic elements joined by threaded rods. Designed for both high- and low-temperature operation, it is suitable for heating and cooling systems and can be used with hybrid heat sources (heating in winter, cooling in summer). Standard equipment includes 1" ball valves, an automatic air vent, two ball valves for filling and draining, two thermometers and a pressure gauge.

Hydraulic connection option
For combinations with other high-temperature heating systems using a single primary circuit, the W90002 hydraulic mixing system can be mounted directly to the manifold to regulate low-temperature mixing.

Models and dimensions
Art.no. | Description | Dimensions
W52002 | EcoFlow MAGNUM Synthetic manifold 2 circuits | 265 x 375 x 125 mm
W52003 | EcoFlow MAGNUM Synthetic manifold 3 circuits | 320 x 375 x 125 mm
W52004 | EcoFlow MAGNUM Synthetic manifold 4 circuits | 375 x 375 x 125 mm
W52005 | EcoFlow MAGNUM Synthetic manifold 5 circuits | 430 x 375 x 125 mm
W52006 | EcoFlow MAGNUM Synthetic manifold 6 circuits | 485 x 375 x 125 mm
W52007 | EcoFlow MAGNUM Synthetic manifold 7 circuits | 540 x 375 x 125 mm
W52008 | EcoFlow MAGNUM Synthetic manifold 8 circuits | 595 x 375 x 125 mm
W52009 | EcoFlow MAGNUM Synthetic manifold 9 circuits | 650 x 375 x 125 mm
W52010 | EcoFlow MAGNUM Synthetic manifold 10 circuits | 705 x 375 x 125 mm
W52011 | EcoFlow MAGNUM Synthetic manifold 11 circuits | 760 x 375 x 125 mm
W52012 | EcoFlow MAGNUM Synthetic manifold 12 circuits | 815 x 375 x 125 mm
W52013 | EcoFlow MAGNUM Synthetic manifold 13 circuits | 870 x 375 x 125 mm
W52014 | EcoFlow MAGNUM Synthetic manifold 14 circuits | 925 x 375 x 125 mm
W52015 | EcoFlow MAGNUM Synthetic manifold 15 circuits | 980 x 375 x 125 mm

Suitable energy sources
Boiler | Yes
Heat pump | Yes
Solar (with buffer tank) | Yes
Pellet stove | Yes
District heating | Yes (on request)

Features (summary)

• Shut-off valve on supply: Yes
• Thermostat on supply and return: Yes
• Pump: No (not included)
• Current meter: No (not included)
• Thermometer on return: Yes
• Thermomanometer on supply: Yes
• Automatic air vent: Yes
• Shut-off valve on return: Yes
• RTL valve on return: No
• Mix quantity measurement on control valve: No
• Non-return valve between return and supply: No

Technical details
Made from preformed synthetic elements reinforced with glass fiber.
Thermostatic valve group M30 x 1.5 for MAGNUM actuators.
Groups equipped with professional flowmeter with range 0-2.5 L/min.
Group connections for Eurocone 3/4".
Primary circuit connection 1"; shut-off via ball valves.
Manifold includes wall mounting system.
1" ball valve with red handle and 1" ball valve with blue handle.
Camflux flowmeter 2.5 L/min - 1/2".
Bimetallic thermometer.
Nickel-plated automatic air vent 1/2" with O-ring.

Package contents

• Assembly report
• Installation instructions
• Warranty certificate

Warranty
10 years on the manifold body and 2 years on accessories.

Specifications / technical data

• Material: Glass-fiber-reinforced polyamide (preformed synthetic elements).
• Use: Heating and cooling; suitable for hybrid systems.
• Group connections: Eurocone 3/4".
• Primary circuit connection: 1" with ball valves.
• Integrated professional flowmeter: range 0-2.5 L/min (Camflux 2.5 L/min - 1/2").
• Included valves: 1" ball valves (red and blue handles), shut-off valves on supply and return.
• Instruments included: Thermometers (supply and return), thermomanometer on supply, pressure gauge.
• Included automatic nickel-plated air vent 1/2".
• Wall mounting system included.
• Optional: W90002 hydraulic system can be attached for low-temperature mixing control.
