Hot water underfloor heating HEATBOARD W

residentialfor laminate floorswith expanded polystyrene panel

Overview

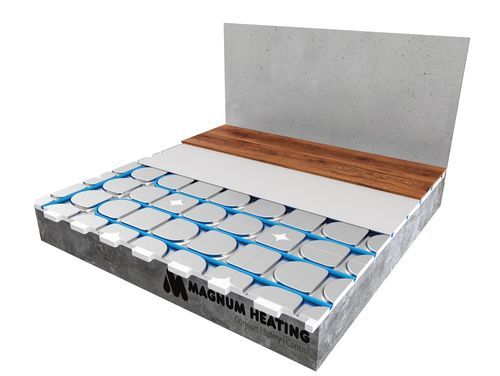

The 18 mm thin water based underfloor heating system MAGNUM HeatBoard W is directly applicable under floating wood, parquet or laminate floors. Only suitable for dry rooms and ideal for renovations.

Application
MAGNUM HeatBoard W is suitable for use with hard dry floor systems (laminate, wood and parquet). MAGNUM DuoBoard should first be installed between the heating system and the floor covering in the case of soft floor coverings (carpets).

Ease of installation
The system boards can be put together like puzzle pieces and are easy to cut to size with a hobby knife. The 12 mm MAGNUM Tube underfloor heating tube can be clamped in. The fixed tube distance is 125 mm. Approximately 8 m of MAGNUM Tube is needed per 1 m². The floor can then be covered with the supplied felt layer on which the top floor can be applied. The subfloor must be stable, level and clean.

Package content

• 13 plates (4,8 m²)
• Felt layer (5 m²)
• Roll of aluminum tape
• Safety gloves

Note
12 mm MAGNUM Tube, a manifold, necessary connection fittings and possibly DuoBoard must be ordered separately.

Article numbers
Art.nr. | Description | m² | Dimensions
W63010 | MAGNUM Heatboard 18 mm | 4,8 m² | 13 plates of 770 x 520 mm

Options
Art.nr. | Options | m | Dimensions
W12100 | MAGNUM Tube PE-RT | 100 m | 12 x 1,5 mm
W12300 | MAGNUM Tube PE-RT | 300 m | 12 x 1,5 mm
W90012 | MAGNUM Adaptor / Euroconus connection | | 12 x 1,5 x 3/4” mm
W91201 | PUSH connection set for 1 x 100 m tube 12 mm | |
W91202 | PUSH connection set for 2 x 100 m tube 12 mm | |
W91203 | PUSH connection set for 3 x 100 m tube 12 mm | |
430030 | DuoBoard 2 x 4 MDF plates | 2,88 m² | 1200 x 600 x 3 mm BaseBoard / 4 mm TopBoard

Specifications (summary)
System type | System height | System width | Min. setting height | Installation | Tube distance | In wet areas | Tiles | Wood | (PVC) Laminate | Carpet | Certification | Warranty
Water based | 18 mm | from 20 cm | 18 mm | Floating | Fixed 125 mm | X | V (i.c.w. Knauf or Fermacell min. 12mm) | V | V (PVC i.c.w. DuoBoard) | V (i.c.w. DuoBoard) | CE | 2 years

Technical details (key values)

• Designation according to standard: EPS-EN13163-T2-L2-S2-P2-DLT(1)5-CS(10)150
• Nominal thickness dL: 17 mm
• Coefficient of thermal conductivity: 0,036 W/mK (DIN V 4108-10)
• Thermal resistance: 0,33 m²K/W
• Compressive stress: 150 kPa (at 10% compression)
• Load under tension: 45 kPa
• Heat resistance: < 80°C
• Area of application: DEO according to DIN 4108-10
• Fire behaviour: Class E according to EN 1350
• Building material class: B2 according to DIN 4102
• Material: EPS polystyrene hard foam (CFK-free)
• Valid standard: EN 13163, DIN V 4108-10

Technical specifications

• System type: Water based
• System height: 18 mm
• System width: from 20 cm
• Min. setting height: 18 mm
• Installation: Floating
• Tube distance: Fixed 125 mm
• Suitable in wet areas: No
• Suitable for tiles: Yes (in combination with Knauf or Fermacell min. 12mm)
• Suitable for wood: Yes
• Suitable for (PVC) laminate: Yes (with DuoBoard)
• Suitable for carpet: Yes (with DuoBoard)
• Certification: CE
• Warranty: 2 years
• Thermal conductivity: 0,036 W/mK
• Thermal resistance: 0,33 m²K/W
• Compressive stress: 150 kPa (at 10% compression)
• Heat resistance: < 80°C
• Material: EPS polystyrene hard foam (CFK-free)
