Expanded polystyrene (EPS) fastening system TACKER

for flooringinterior

Overview

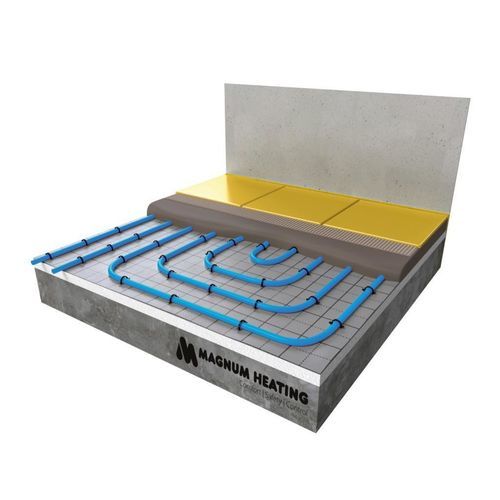

The Tacker system provides insulation plates, grid foil and fastening staples for efficient underfloor heating installation. Tubes are fixed directly to 20, 30 or 50 mm insulation plates using Tacker staples, making the system suitable for large-area installations. Edge insulation strips must be placed against all walls to allow for floor expansion and contraction.

Tacker Grid foil
For installations on top of insulation, the Tacker Grid foil is available. The foil features a rectangular grid 10 cm x 10 cm with an inner 5 cm x 5 cm mesh, allowing pipe layouts at various centre-to-centre distances.

Tacker staples and device
The system uses plastic Tacker staples (40 mm and 60 mm) that fasten the heating pipes directly to the insulation plates. Staples are applied with the Tacker stapler for quick and reliable fixing.

Products (article numbers)
Art.nr. | Description | m² | Dimensions
W90102 | Tacker Grid foil | 50 m² | 50 m x 1 m
W90103 | MAGNUM Tacker Insulation Plate | 10 m² | Thermal 20 mm
W90104 | MAGNUM Tacker Insulation Plate | 10 m² | Thermal 30 mm
W99915 | MAGNUM Tacker Insulation Plate | 10 m² | Thermal 50 mm
W90122 | MAGNUM Tacker Insulation Plate | 10 m² | Acoustic 20 mm
W90123 | MAGNUM Tacker Insulation Plate | 10 m² | Acoustic 30 mm

Art.nr. | Description | Notes
W90105 | Tacker Staples | 40 mm – 300 pcs
W90106 | Tacker Staples | 60 mm – 300 pcs

Art.nr. | Description
W90107 | Tacker Stapler

Specifications
System type | Water based
System height | 20, 30 or 50 mm
System width | 1000 mm
Min. setting height | 5 cm above the tube
Installation | Floating / Pasting
In wet areas | Yes
Tiles | Yes
Wood | Yes
(PVC) Laminate | Yes
Carpet | Yes
Certification | DIN 13163, DIN 4108-10, building material class B2 (DIN 4102-B2)
Warranty | 2 years

Technical details

• Dimensions plate (roll): 10000 x 1000 mm
• Plate thickness: 20, 30 or 50 mm
• Thermal resistance: approx. 0.44 m²K/W (20 mm), 0.75 m²K/W (30 mm), 1.25 m²K/W (50 mm)
• Max. traffic load: 4 kPa (kN/m²)
• Impact noise improvement: 28 dB or 29 dB
• Nominal thermal conductivity (DIN 4108-4): 0.045 W/mK
• Staple options: 40 mm and 60 mm (300 pcs packs); staples 38 mm suitable for pipes Ø 14–20 mm
• Tacker stapler dimensions: 800 x 140 x 70 mm
