Corrosion-resistant collector PREMIUM

Overview

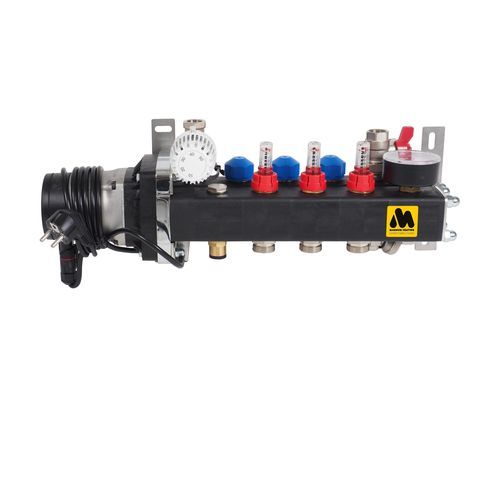

The MAGNUM Premium Composite manifold is a compact, modular hydraulic distribution unit for heating and cooling systems. Individual elements are manufactured from glass-fibre-reinforced polyamide and joined with threaded rods. The double-walled element design provides thermal insulation and significantly reduces condensation on the manifold.

Models / Dimensions
Art.nr. — Description — Dimensions
W51001 — MAGNUM Premium Composite Manifold 1 Group — 390 x 200 x 170 mm
W51002 — MAGNUM Premium Composite Manifold 2 Groups — 445 x 200 x 170 mm
W51003 — MAGNUM Premium Composite Manifold 3 Groups — 500 x 200 x 170 mm
W51004 — MAGNUM Premium Composite Manifold 4 Groups — 555 x 200 x 170 mm
W51005 — MAGNUM Premium Composite Manifold 5 Groups — 610 x 200 x 170 mm
W51006 — MAGNUM Premium Composite Manifold 6 Groups — 665 x 200 x 170 mm
W51007 — MAGNUM Premium Composite Manifold 7 Groups — 720 x 200 x 170 mm
W51008 — MAGNUM Premium Composite Manifold 8 Groups — 775 x 200 x 170 mm
W51009 — MAGNUM Premium Composite Manifold 9 Groups — 830 x 200 x 170 mm
W51010 — MAGNUM Premium Composite Manifold 10 Groups — 885 x 200 x 170 mm
W51011 — MAGNUM Premium Composite Manifold 11 Groups — 940 x 200 x 170 mm
W51012 — MAGNUM Premium Composite Manifold 12 Groups — 995 x 200 x 170 mm
W51013 — MAGNUM Premium Composite Manifold 13 Groups — 1050 x 200 x 170 mm
W51014 — MAGNUM Premium Composite Manifold 14 Groups — 1105 x 200 x 170 mm
W51015 — MAGNUM Premium Composite Manifold 15 Groups — 1160 x 200 x 170 mm

Application

• Central heating boiler — Yes
• Heat pump — No
• Solar heat (with buffer tank) — Yes
• Pellet stove — Yes
• District heating — Yes (on request)

Specifications (features present)

• Valve on inlet — Yes
• Thermostat on inlet — Yes
• Pump — Yes
• Flow meter — Yes
• Thermometer — Yes
• Pressure gauge — Yes
• Air vent — Yes
• Valve on return — Yes
• RTL valve on return — No
• In control valve mixing quantity — No
• Stop valve between supply and return — No
• Inspection — CE

Technical details

• Equipped as standard with an energy-efficient Grundfos A-Label pump.
• Thermostatic group valves M30x1,5 suitable for MAGNUM actuators.
• Group connections compatible with ¾” Eurocones.
• Groups fitted with professional flow meters with a range of 0–2.5 L/min.
• Primary connection ½ (from 8 groups ¾).
• Equipped with thermometer, air vent, maximum safety valve and filler tap.
• Thermostatically prepared valve ½ (from 8 groups ¾).
• Thermostat knob with cap valve in immersion tube.
• Flow meter: Camflux 2.5 L/m - ½.
• Manothermometer 60 mm axial including DB.
• Air vent ½.
• Ball valve ½ two-part blue (from 8 groups ¾).

Installation method
Water temperature is adjusted using a thermostat head. The manifold includes a maximum safety device to prevent excessively hot water being circulated into the floor system.

Package content

• Pressure test report
• Installation instructions
• Warranty certificate
• MAGNUM Premium Composite Manifold

Warranty
MAGNUM Premium Composite: 10 years on body, 2 years on valves.
