Expanded polystyrene (EPS) fastening system MAGNUM

for flooringinterior

MAGNUM castellated plate

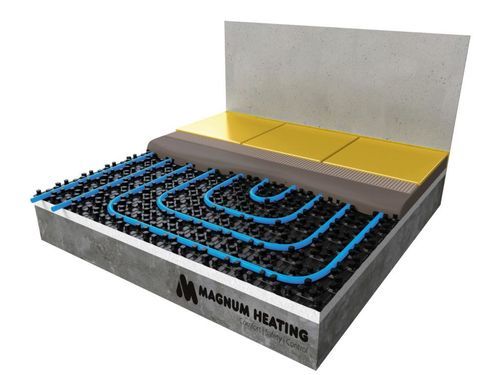

Castellated plates are specifically designed to simplify floor preparation for the installation of heating pipes, significantly reducing installation time. In addition, castellated plates allow pipes to be fixed quickly and easily. Available as rigid, film-laminated thermoformed EPS plates, both thermal and acoustic, in various thicknesses.

Castellated plate – Thermal – 75 mm pitch
Art.nr. | EAN code | Description | Dimensions (m) | Unit/pack
W99904 | 5414305789112 | Castellated plate 17 mm / 46 mm | 1.35 x 0.75 | pcs/14
W99905 | 5414305789129 | Castellated plate 31 mm / 60 mm | 1.35 x 0.75 | pcs/10

Rigid castellated plate – Thermal – 50 mm pitch
Art.nr. | EAN code | Description | Dimensions (m) | Unit/pack
W99880 | 8718531999725 | Rigid castellated plate 8 mm / 30 mm | 1.40 x 0.80 | pcs/17
W99885 | 8718531999732 | Rigid castellated plate 10 mm /32 mm | 1.40 x 0.80 | pcs/16
W99901 | 5414305789082 | Rigid castellated plate 17 mm / 39 mm | 1.40 x 0.80 | pcs/11
W99850 | 8436611650600 | Rigid castellated plate 21 mm / 43 mm | 1.40 x 0.80 | pcs/10
W99855 | 8436611650655 | Rigid castellated plate 27 mm / 49 mm 2022 standard | 1.40 x 0.80 | pcs/9
W99860 | 8436611650662 | Rigid castellated plate 44 mm / 66 mm 2022 standard | 1.40 x 0.80 | pcs/6

Castellated plate – Thermal/Acoustic – 75 mm pitch
Art.nr. | EAN code | Description | Dimensions (m) | Unit/pack
W99940 | 8718531999787 | Acoustic castellated plate 21-50+10 mm / 60 mm | 1.35 x 0.75 | pcs/10
W99941 | 8718531999794 | Acoustic castellated plate 21-50+20 mm / 70 mm | 1.35 x 0.75 | pcs/8
W99942 | 8718531999800 | Acoustic castellated plate 31-60+10 mm / 70 mm | 1.35 x 0.75 | pcs/8
W99943 | 8718531999817 | Acoustic castellated plate 31-60+20 mm / 80 mm | 1.35 x 0.75 | pcs/7

Rigid castellated plate – Thermal/Acoustic – 50 mm pitch
Art.nr. | EAN code | Description | Dimensions (m) | Unit/pack
W99944 | 8718531999824 | Rigid acoustic castellated plate 18-40+10 mm / 50 mm | 1.40 x 0.80 | pcs/9
W99945 | 8718531999831 | Rigid acoustic castellated plate 26-48+10 mm / 58 mm | 1.40 x 0.80 | pcs/7
W99946 | 8718531999848 | Rigid acoustic castellated plate 33-55+10 mm / 65 mm | 1.40 x 0.80 | pcs/6
W99947 | 8718531999855 | Rigid acoustic castellated plate 18-40+20 mm / 60 mm | 1.40 x 0.80 | pcs/8
W99948 | 8718531999862 | Rigid acoustic castellated plate 26-48+20 mm / 68 mm | 1.40 x 0.80 | pcs/6
W99949 | 8718531999879 | Rigid acoustic castellated plate 33-55+20 mm / 75 mm | 1.40 x 0.80 | pcs/5
W99960 | 8436611650679 | Rigid graphite castellated plate 23 mm / 45 mm 2022 standard | 1.40 x 0.80 | pcs/10
W99965 | 8436611650686 | Rigid graphite castellated plate 38 mm / 60 mm 2022 standard | 1.40 x 0.80 | pcs/7

Specifications
System type | Water based
System height | 8 to 80 mm
Pipe pitch | 50 mm and 75 mm
Min. installation height | 5 cm above the pipe
Installation | Finished floor
Suitable for wet areas | Yes
Tiles | Yes
Wood | Yes
(PVC) Laminate | Yes
Carpet | Yes
Warranty | 2 years

Technical details
The MAGNUM thermoformed castellated plate is a high-density self-extinguishing expanded polystyrene (EPS-AU) panel with a rigid thermoformed finish, used in the installation of underfloor heating systems.
The high-density EPS gives the panel high thermal insulation, preventing heat loss through the floor slab.
The thermoformed finish is rigid and waterproof, preventing heat loss through vapour and increasing the mechanical strength of the panel.
It is moulded with tongue-and-groove joints on all 4 edges via the thermoformed plastic, allowing easy installation of the plates and avoiding thermal bridges.
Declaration of performance, mandatory for all insulation materials used in construction, in compliance with UNE EN 13163 for thermal insulation.
Product certificate granted by AENOR, in compliance with UNE EN 13163 for thermal insulation.

Advantages
– Thanks to its thermal insulation, heat loss through the floor slab is prevented, increasing comfort while reducing energy consumption.
– The knob design allows pipes to be fixed very quickly, without clips or accessories.
– Easy installation thanks to a light and very manageable material.
– The rigid thermoformed finish gives high mechanical strength, so it withstands foot traffic during installation.
– Suitable for pipes from 14 to 16 mm diameter.
– Specifically designed to meet the requirements of the Spanish Building Technical Code (CTE).
– Meets CE marking requirements.
– Pipe pitch: 50 or 75 mm
– Overall plate dimensions: 1400 x 800 or 1350 x 750 mm
