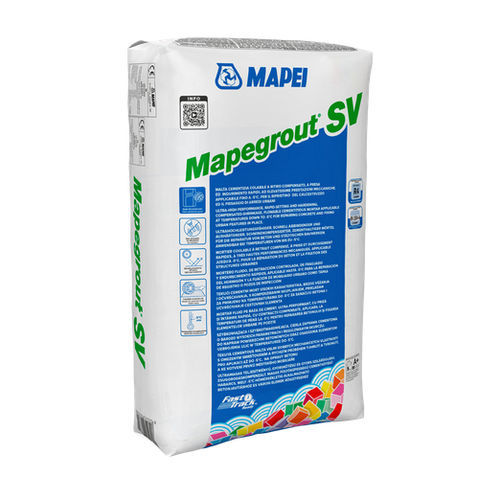

Repair mortar MAPEGROUT SV

fixingfor concretegray

Short description
MAPEGROUT SV is an ultra-high-performance, hi-flow cementitious repair mortar with compensated shrinkage, rapid-setting and rapid-hardening properties. It is designed for concrete repair and for anchoring/fixing manhole covers, drains, gratings and urban furniture; applicable at temperatures down to -5°C.

Key features

• Ultra-high mechanical performance
• Rapid setting and rapid hardening for fast reopening to traffic
• Compensated shrinkage to reduce cracking
• Hi-flow, pourable consistency (no vibration required)
• Applicable at low temperatures (down to -5°C)

Applications / Where to use

• Repair of concrete in civil and infrastructure works
• Anchoring and fixing of gratings, manholes, drains and urban furniture
• Repair and reinstatement of airport pavements and urban paving
• Poured applications in formwork; suitable for layers up to 5 cm per pour

Documentation

• Technical data sheet
• Safety Data Sheet (SDS)
• CE Declaration of Performance (EN 1504 series)

CE / Standards
EN 1504-6 | 2025-10-02 | N.S.
EN 1504-3 | 2022-10-06 | N.S.

Notes

• Product is CE referenced against EN 1504 standards (see Declaration of Performance entries)
• Documentation available on request: Technical data sheet, Safety Data Sheet, CE Declaration of Performance

Technical characteristics / specifications

• Product type: Cementitious, compensated-shrinkage, flowable (hi-flow) mortar
• Colour: grey or black (variant dependent)
• Maximum aggregate size: 2.5 mm
• Mixing ratio: 100 parts powder : 12–13 parts water (≈3.0–3.25 L per 25 kg bag)
• Working time (pot life): ≈15 min at +20°C
• Final set: < 35 min (typical)
• Application temperature: down to -5°C
• Minimum layer thickness: 1 cm; maximum per layer: 5 cm
• Consumption: ≈20 kg/m² per cm thickness
• Packaging: 25 kg polyethylene bag
• Storage: 12 months in unopened original packaging
