Fire safety signage SÉCURITÉ

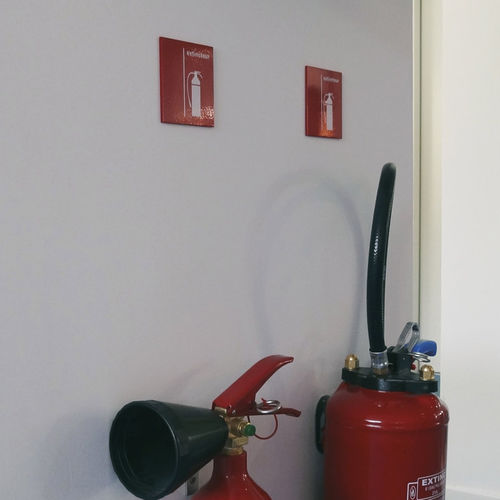

Pictogram identification of control systems against fire. The supports are composed as follows: A square of 90 mm side, aluminum 25 / 10th Lacquered epoxy red security RAL 3001 on which is screen printed the pictogram security of standard NF S 60-303. The support comprises a drilling milled to be fixed with a countersunk screw. Safety instructions The support consists of an aluminum plate of 25 / 10th epoxy lacquer red security RAL 3001 on which is screen printed the text of the safety instructions of the NF S 60-303 standard. The support comprises two drillings milled to be fixed using two countersunk screws. General response plan, response plan and evacuation plan These supports consist of the following elements: Part supporting the plans or building floors consists of 2 plates of PMMA (poly methyl methacrylate) polished edges 3 mm thickness allowing insertion of a polyester film printed by laser or ink jet . These plates are in A3 format (297x420 mm). The parts in head and foot of plan which support the heading of the plan (and in the case of emergency plans and evacuations of safety instructions) are made of aluminum 25 / 10ème epoxy lacquer (red and green security RAL 3001 Security RAL 6032 for "evacuation plan"). The supports are fixed by screwing, with 4 countersunk screws.
