Square parasol ALBATROS

rectangularroundtelescopic

Overview
The ALBATROS centre-pole parasol is designed to cover very large outdoor areas where standard parasols reach their limits. A single ALBATROS covers up to 78 m² and features a clear, restrained design tailored for hospitality, hotel, event and retail applications. The model focuses on stability, ease of use and wind safety.

Key benefits

• Efficient use of outdoor space with 47 available sizes and formats (round, square, rectangular).
• Covers up to 78 m² with XXL formats available.
• Centre-pole design with all-weather protection functionality.
• Telescopic pole allows opening and closing above many seating arrangements.
• Wind safety verified to DIN 1055:2005 and EN 1991-1-1:2011-2014.
• UV protection UPF40 to UPF80 tested to standard UV801 across the fabric range.
• Durable extruded aluminium alloy ribs and profiles manufactured in Europe.
• Polyester powder coating for corrosion resistance.
• High-quality bevel gears for smooth long-term operation.
• Self-tensioning telescopic spring system for canopy tensioning.
• Canopy and valance are quick to replace and can be printed by screen or digital printing.
• Extensive accessories available; delivered ready to set up; spare parts available for on-site repair.

Fabric types & colours
Choose from over 70 textile designs in three fabric types:

• MayTex Poly, 230 g/m², water column > 1,000 mm
• MayTex Acryl, 300 g/m², water column 370 mm
• MayTex PVC, 480 g/m², water column > 1,000 mm
• Other colours and fabric types available on request
• Fire-rated textiles (A or B1) available on request
• All fabrics manufactured in Europe

Operation
The ALBATROS can be operated in three ways:

• Hand crank
• Cordless drill
• Optional tubular motor (electrically driven)

Valance versions
Available valance options:

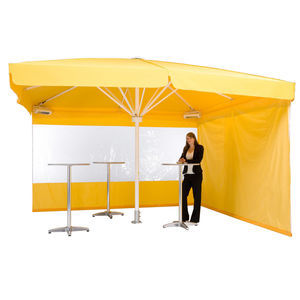

• Version 1 – classic valance, useful for rain gutters, side panels and logo application
• Version 2 – no valance for a modern, minimal appearance
• Three valance options in total

Parasol frame
Frame made from high-quality extruded aluminium alloy profiles. Key frame dimensions:

• Parasol pole: Ø 100 × 5 mm
• Spoke dimensions: 50 × 25 × 2 mm
• Support rail dimensions: 40 × 25 × 2 mm

Connecting elements
All moving axes are secured with removable bolts to ensure durability, stability and ease of repair.

Canopy
Self-tensioning telescopic spring system keeps the canopy taut over years of use and absorbs dynamic wind loads. Canopy replacement uses stainless-steel hooks.

Reinforced spokes
Spokes are reinforced in high-load areas by an integrated steel core.

Frame coating & colours
Powder-coated finish, impact and shock resistant. Standard and custom colours:

• Standard: RAL 9010 pure white
• Custom at no extra charge: RAL 7016 anthracite grey with fine texture
• Other custom colours available for a surcharge

Top plate
Elegant, detachable top plate; colour matches the frame coating.

When not in use
Protective cover supplied; easy to slide over the parasol. Cover includes an integrated zip.

Assembly
Delivered ready to set up. Place the parasol in the chosen base and remove packaging; assembly takes only a few minutes.

Operating manual
Operating manual available for download in PDF format for ALBATROS including locking hinge instructions.

Accessories
Extensive matching bases and accessories are available, including base plates, full-frame pedestals, anchor plates, concrete bases, drainage units, anti-slip mats and theft pins.

Technical specifications

• Model: ALBATROS
• Brand: MAY
• Coverage: up to 78 m² (XXL formats)
• Number of sizes/formats: 47 different sizes (round, square, rectangular)
• Sample size shown: Ø 4.00 m — example area ~11.3 m²
• Height when closed (incl. top plate): 461 cm
• Height when opened (incl. top plate): 311 cm
• Headroom with valance: 214 cm
• Headroom without valance (from spoke edge): 242 cm
• Valance height: 33 cm
• Ground clearance (from spoke edge): 252 cm
• Crank height: 92 cm
• Height of lower distribution flange: 242 cm
• Parasol pole diameter: Ø 100 mm
• Pole wall thickness: 5 mm
• Spoke dimensions: 50 × 25 × 2 mm
• Support rail dimensions: 40 × 25 × 2 mm
• Weight (without packaging, MayTex Acryl without valance): 63 kg
• Packaging weight: 34 kg
• Length of packaging (cardboard sleeve Ø 45 cm): 480 cm
• Extended steel reinforcement: integrated steel core in spokes
• Minimum ballast example: 6 × ~696 kg concrete slabs
• Foundation required (L / W / minimum depth): 85 / 85 / 60 cm
• Wind safety: verified to DIN 1055:2005 and EN 1991-1-1:2011-2014
• UV protection: UPF40 to UPF80 tested to UV801
• Canopy tensioning: self-tensioning telescopic spring system with stainless-steel hooks
• Frame finish: polyester powder coating; standard RAL 9010; RAL 7016 anthracite grey available; other colours on request
• Operation methods: hand crank, cordless drill, optional tubular motor
• Delivery: delivered ready to set up; spare parts available for repair
