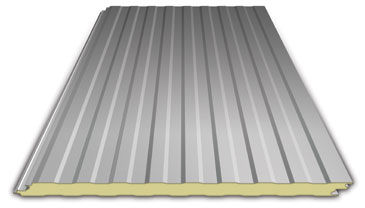

Facade sandwich panel ECO-FICIENT™ ROYAL

metal facingPolyisocyanurate PIR core

The Eco-ficient™ Royal insulated wall panel is designed for both exterior wall applications and interior wall partitions. The versatility of this panel allows for a uniform appearance from outside to inside and from room to room in partition applications. The Eco-ficient™ Royal panel has aesthetically pleasing flat exterior and interior skins with our light Mesa profile. This panel is most commonly used for commercial applications. The Eco-ficient™ Royal panel is also ideal for cold storage facilities. Eco-ficient™ Royal Product Information Coverage Width – 36”, 42” Thicknesses – 2”, 2 ½”, 3”, 4”, 5”, 6” R-value – 7.69 per inch of insulation thickness Lengths – Recommended maximum is 40’ Panel Attachment – Concealed Fastening System Exterior Gauge – 26 (standard); 24, 22 (optional) Interior Gauge – 26 (standard); 24, 22 (optional) Exterior Finishes – Stucco-embossed Interior Finishes – Stucco-embossed Exterior Coatings – Signature® 200, Signature® 300, Applied Finishes Interior Coatings – USDA White (standard)
