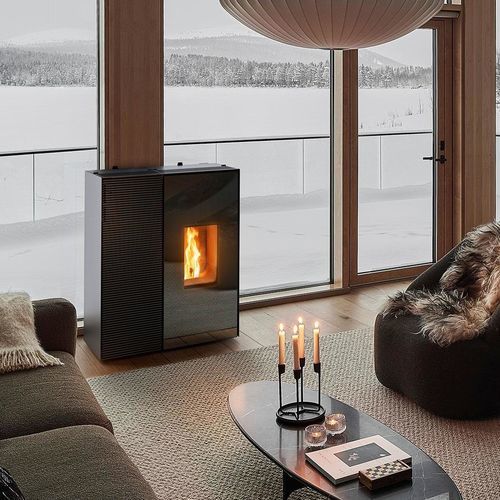

Pellet heating stove EIKO 365

wood pellet6 kWmulti-fuel

Overview
EIKO 365 is MCZ’s first hybrid pellet stove combining pellet heating (nominal 6.0 kW) with an integrated air-to-air cooling module (2.6 kW / 9,000 BTU/h) to provide year-round comfort. Heating and cooling are independent systems: pellets for winter heating and the integrated cooling block for summer cooling. Installation requires a single wall opening; no external unit and no condensate drain are needed.

Main features

• No external unit required: compact installation using a single wall opening for exhaust and intake.
• Year-round comfort: combined pellet heating and integrated cooling module (separate systems).
• Zero condensate drain: advanced vaporization system removes need for condensate drain or collection trays.
• Reduced footprint: compact dimensions allow installation close to the wall (W 86.5 cm x H 110.5 cm x D 51.3 cm).
• Core® Technology: cleaner and more efficient combustion with a wide, natural flame; significantly lower emissions and up to 15% pellet savings.
• Automatic brazier: reduces frequency of cleaning and ash removal.
• Fast ignition: ceramic spark plug yields flame in under three minutes with reduced ignition time and lower electrical consumption.
• Advanced control: Maestro+ control via hidden panel or smartphone app through Wi‑Fi/Bluetooth for temperature control, scheduling and monitoring.

Heating technical data
Energy Efficiency Class (scale A++/G): A++
Seasonal space heating energy efficiency (ηs): 89 %
Appliance Type (tightness): CC50
Dimensions (LxHxP): 86.5 x 110.5 x 51.3 cm
Nominal heat output: 6.0 kW
Minimum heat output: 2.9 kW
Efficiency at Max: 91.8 %
Efficiency at Min: 92.0 %
Hourly consumption at Min: 0.70 kg/h (may vary with fuel)
Hourly consumption at Max: 1.40 kg/h (may vary with fuel)
Autonomy at Min: 34 h (**)
Autonomy at Max: 17 h (**)
Hopper capacity: 37 lt / 24 Kg (**)
Heatable volume (20 W/m³): 300 m³ (*)
Heatable volume (35 W/m³): 171 m³ (*)
Heatable volume (55 W/m³): 109 m³ (*)
Smoke outlet: 80/130 mm
Net weight: 220.00 kg
Temperature of exhaust smoke: 138 °C (***)
Mass of smoke: 4.4 g/s

Cooling technical data
Model (cooling module): WAP-09EA26
Energy class (A+++/D): A
EER: 2.6
Voltage / Frequency: AC 220-240V ~ 50Hz
Energy consumption: 1000 W
Cooling capacity: 2.6 kW (9000 BTU/h)
Type of refrigerant: R290
Quantity of refrigerant: 0.207 kg
Sound power level: 60 dB
Minimum/maximum installation room temperature: 5°C - 35°C (heating); 16°C - 35°C (cooling)
Minimum/maximum relative humidity installation room: 30% - 80%
Fuse: T5.00A.H 250V(est)

Certifications & efficiency notes
Certified 5-star Aria Pulita; BImSchV 2nd stage (Germany) and other regional standards; Flamme Verte 7 stars; Ecodesign 2022 compatible; A++ energy efficiency class for heating.

Technical specifications

• Brand: MCZ
• Commercial name / Model: EIKO 365
• Nominal heating output: 6.0 kW
• Cooling capacity (integrated module): 2.6 kW (9000 BTU/h)
• Heating efficiency (seasonal ηs): 89 %
• Heating efficiency at max/min: 91.8 % / 92.0 %
• Hopper capacity: 37 lt / 24 kg
• Consumption range: 0.70 - 1.40 kg/h
• Autonomy range: 17 - 34 h (depending on settings and fuel)
• Dimensions (LxHxP): 86.5 x 110.5 x 51.3 cm
• Net weight: 220.00 kg
• Smoke outlet diameter: 80/130 mm
• Refrigerant type / quantity: R290 / 0.207 kg
• Integrated control: Maestro+ (Wi‑Fi / Bluetooth via app)
• Special features: No external unit required, zero condensate drain, Core® Technology, automatic brazier, fast ignition
