Fire resistance classes:
class F600 – fire resistance 600°C/60 min.
class F400 – fire resistance 400°C/120 min.
class F300 – fire resistance 300°C/60 min.
class F200 – fire resistance 200°C/120 min.
Certificate of constancy of performance 1488-CPD-0209/W for F400.
Certificate of constancy of performance 1488-CPR-0526/W for F600.
Functional properties according to EN 12101-3:2002+AC:2005.
Patent No. 220478 issued by the Patent Office of the Republic of Poland.
Declaration of performance 002-01-CPD-2017 for F400.
Declaration of performance 007-05-CPR-2015 for F600.
CE Declaration of conformity W/01/A/2012.

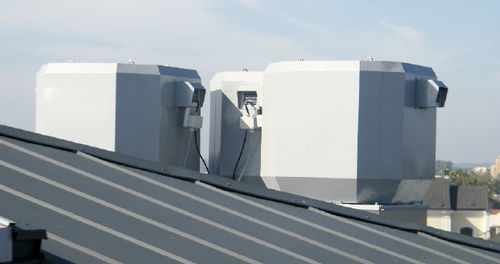

Roof smoke exhaust fans type mcr Pasat with radial rotor are designed for removing smoke and hot air from rooms during fire, and for comfort ventilation. They may feature one-speed or two-speed engines and combine comfort function with fire function, e.g. for ventilating and de-smoking underground garages, malls, production halls.
Smoke exhaust fans facilitate evacuation of humans and equipment from rooms covered by fire; they allow for a quicker and more effective firefighting operation, also protecting the building structure and its equipment from high temperature, and preventing propagation of fire, fire gases and smoke to neighbouring fire zones. The devices are adapted for outdoor work in vertical working position.
F600, F400 fire resistance classes
6 nominal dimensions
two-gear variants for mixed ventilation
comprehensive, certified accessories
aluminium enclosure - lightweight
available diameters: 315, 355, 400, 500, 630, 710 mm
efficiency up to 50 000 m3/h
compression up to 1 950 Pa
nominal power 0.1 kW - 30 kW
