Roller shutter switch 318601

key lockelectronicrecessed

Product

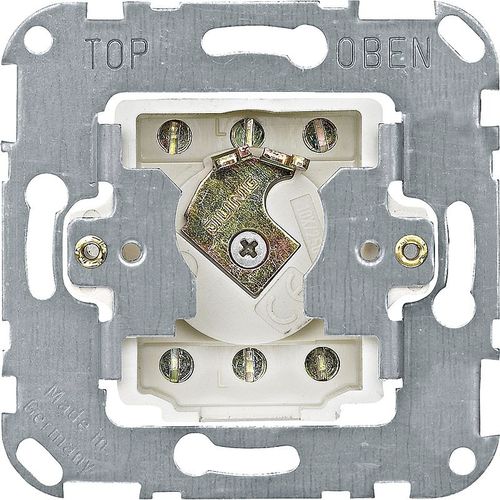

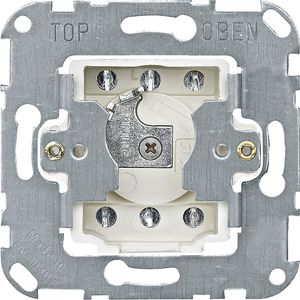

Change-over detent switch insert for lock cylinder, Merten 318601, 2-pole

Short identification
Article number: 318601
Brand: Merten

Price & markings
Recommended retail price (excluding VAT): 63.40 €
EAN code: 4011281579358

Main documents

• Product data sheet
• Declaration of conformity
• Catalog
• Declaration of Conformity (Sustainability)

Compatibility (excerpt)

• Accessories (examples): profile half-cylinders with key extraction in mid position (MEG3985-0001), profile half-cylinders with key extraction in 3 positions (MEG3985-0003)
• Cover plates (various executions / System Design and System M, multiple colour/material variants)

Note
Recommended retail price excluding VAT for Germany, as of May 2026.

Technical specifications

• Series: Merten inserts
• Product or component type: Switch
• Device presentation: Mechanism with mounting frame
• Product name (type): Flush-mounted inserts
• Switch function: Change-over (2-way)
• Actuator: Key
• Enclosure variant: Flush-mounted
• Mounting mode: By screws and claws
• Rated operational voltage [Ue]: 250 V
• Max. switching current: 10 A
• Material: Metal; Plastic
• Protection rating (IP): IP20
• Packaging unit VPE 1 type: PCE
• Number of devices per package: 1
• Packaging weight (VPE 1): 98,000 g
• VPE 2 type: CAR (Quantity 50, Weight 5,198 kg, Dimensions HxWxL: 19,800 cm x 31,000 cm x 40,900 cm)
• Warranty (in months): 18
