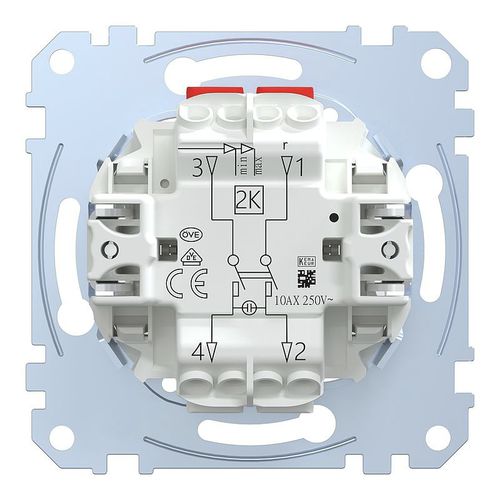

Light switch MEG3102-0000

rockerelectromechanicalrecessed

Product name
Off-indicator switch insert, 2-pole, 10 AX, 250 V AC, plug-in terminals

Overview

• Manufacturer/Brand: Merten
• Product handle / internal reference: MEG3102-0000
• Material price group: T0
• Recommended retail price: €37.25 (excl. VAT, Germany)

Product features

• Type: Off-indicator switch insert (flush-mounted mechanism)
• Polarity: 2-pole
• Switch function: 2-pole / 1-pole
• Rated current: 10 AX
• Rated operational voltage [Ue]: 250 V AC
• Technology: electromechanical
• Connection type: screwless terminals / plug-in terminals
• Actuator: rocker (1 rocker)
• Local indication: LED (indicator)
• Housing version: built-in (mechanism with mounting frame)
• Mounting method: by screws and claws
• Degree of protection (IP): IP20

Packaging & Logistics

• Primary packaging unit: PCE (1 piece per package)
• Number of devices per package: 1
• Primary package weight: 62.000 g
• Primary package dimensions: Height 3.500 cm · Width 7.100 cm · Length 7.200 cm
• Secondary packaging: BB1 · Quantity: 10 · Weight: 740.000 g · Dimensions HxWxL: 9.500 cm x 18.200 cm x 27.700 cm
• Tertiary packaging: CAR · Quantity: 60 · Weight: 4.804 kg · Dimensions HxWxL: 30.900 cm x 33.600 cm x 40.600 cm

Quality & Warranty

• Brand: Merten (part of Schneider Electric)
• EAN code: 4042811144517
• Warranty: 18 months

Sustainability note

• Mercury-free: Yes
• Packaging without plastic: Yes
• Packaging with recycled cardboard: Yes
• Take-back: Yes
• SCIP number: 8baa1bd8-8da4-4d84-953d-349bb0677982
• CO2 footprint (Total lifecycle Carbon footprint): 3 kg CO2 eq. (Manufacturing A1-A3: ~0.3 kg; Distribution A4: ~0.033; Installation A5: ~0.012; Use B: ~2.909; End-of-life C: ~0.139)
• Recyclability potential: 41 %
• Average recycled plastic content: 45 %

Technical specifications

• Series: Merten
• Product or component type: Switch
• Device application: Lighting
• Device representation: Mechanism with mounting frame
• Type of technology: Electromechanical
• Number of rockers: 1
• Actuator: Rocker
• Switch function: 2-pole / 1-pole
• Local indication: LED
• Indication function: Indicator
• Rated operational voltage [Ue]: 250 V
• Network type: AC
• Rated current: 10 AX
• Connections - terminals: Screwless terminals
• Mounting mode: By screws and claws
• Degree of protection (IP): IP20
• Packaging units: see Packaging & Logistics
• Contractual warranty: 18 months
