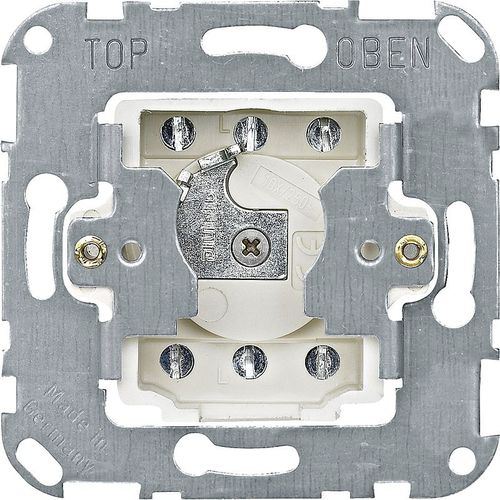

Roller shutter switch 318901

push-buttonelectronicrecessed

Short description
Roller shutter push-button insert for operation with key/press for roller shutters; designed for flush-mounted installation with mounting frame. Product number on the page: 318901. Two-pole switch function.

General information
Material price group: E0. Brand: Merten. EAN code: 4011281579402.

Compatible accessories

• MEG3985-0001 – Profile half-cylinder with key removal in middle position
• MEG3985-0003 – Profile half-cylinder with key removal in 3 positions

Compatible cover plates (selection)

• 348260 – Central plate for roller shutter push/latching switch inserts, aluminium, AQUADESIGN
• 348214 – Central plate for roller shutter push/latching switch inserts, anthracite, AQUADESIGN
• 348219 – Central plate for roller shutter push/latching switch inserts, polar white, AQUADESIGN
• 348244 – Central plate for roller shutter push/latching switch inserts, white, AQUADESIGN
• MEG3883-6052 – Central plate for roller shutter push/latching switch inserts, Moccametallic, System Design
• MEG3883-6050 – Central plate for roller shutter push/latching switch inserts, Nickelmetallic, System Design
• MEG3883-6036 – Central plate for roller shutter push/latching switch inserts, stainless steel, System Design
• MEG3883-6034 – Central plate for roller shutter push/latching switch inserts, anthracite, System Design
• MEG3883-6035 – Central plate for roller shutter push/latching switch inserts, Lotus white, System Design
• 319360 – Central plate for roller shutter push/latching switch inserts, aluminium, System M
• 319314 – Central plate for roller shutter push/latching switch inserts, anthracite, System M
• 319319 – Central plate for roller shutter push/latching switch inserts, polar white, System M
• 319425 – Central plate for roller shutter push/latching switch inserts, active white gloss, System M
• 319419 – Central plate for roller shutter push/latching switch inserts, polar white gloss, System M

Main documents (titles only)

• Product data sheet (PDF available)
• Declaration of conformity (EU conformity statement)
• Catalog (Merten catalog)
• Declaration of Conformity (Sustainability) / REACh statement / EU-RoHS statement

Price note
Displayed price on the page: 63,40 € (recommended retail price, plus VAT applicable in Germany).

Technical characteristics / specifications

• Series: Merten inserts
• Product/component type: Push-button
• Device representation: Mechanism with mounting frame
• Product name (category): Flush-mounted inserts
• Switch function: 2-pole
• Control type: Key
• Housing variant: Built-in
• Mounting mode: By screws and claws
• Rated operational voltage [Ue]: 250 V
• Max. switching current: 10 mA
• Material: Metal and plastic
• Degree of protection (IP): IP20
• Packaging unit 1: PCE; Quantity per pack: 1; Packaging weight: 98.000 g; Pack 1 height: 5.600 cm; Pack 1 width: 7.700 cm; Pack 1 length: 7.700 cm
• Packaging unit 2: CAR; Quantity: 50; Pack 2 weight: 5.226 kg; Pack 2 height: 20.000 cm; Pack 2 width: 30.400 cm; Pack 2 length: 40.400 cm
• Warranty: 18 months
