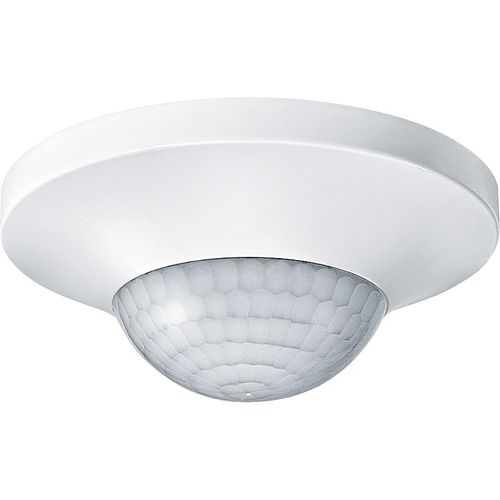

Indoor presence sensor MEG5510-1219recessed ceilingcommercialhome
Add to favorites
Compare this product
Characteristics
- Location
- indoor
- Installation
- recessed ceiling
- Sector
- home, commercial
- Electric powered
- mains powered
- Other characteristics
- for lighting, remote-controlled
- Color availability
- white
- Detection range (m)
Min.: 0 m
(0'00" )Max.: 7 m
(22'11" )- Detection angle
360 °
Description
Product
Key features
Technical characteristics (excerpt)
Packaging & dimensions
Warranty
Sustainability & environmental data
Scope of delivery / Documents
Technical specifications (summary)
- Name: Presence detector ARGUS, 2-relay outputs, polar white
- Manufacturer/Brand: Merten
- Internal reference (site): MEG5510-1219
- EAN: 4042811182397
- Material price group: E4
- Color / RAL: Polar white / RAL 9010
- Packaging: Carton
Key features
- Type: Presence detector with 2 relay outputs
- Load types supported: halogen lamps, incandescent, magnetic and electronic transformers, motors, capacitive loads, compact fluorescent lamps (see technical data)
- Master function available
- Mounting: ceiling recessed installation
- Detection: radius up to 7 m, horizontal angle 0–360°
- Adjustable light sensitivity: 10–1000 lux
- Time settings: from 10 s up to 120 min depending on mode
- Housing material: glossy PC (polycarbonate); color polar white (RAL 9010)
- Degree of protection: IP20; recommended mounting height: 2.5 m
Technical characteristics (excerpt)
- Rated operating voltage: 220/230 V AC
- Frequency: 50/60 Hz
- Inputs compatible with push-buttons and electronic modules
- Input function: 2 external triggers via potential-free contact
- Output current: up to 10 A / 4 A depending on application
- Number of channels: 2
- Control type: remote control capable
- Time delay ranges: 5–120 min and 10 s–30 min (depending on function)
- Detection sensitivity and angle adjustable
Packaging & dimensions
- Primary unit: 1 piece per box
- Package weight (single): 272 g
- Package dimensions (single): H 10.1 cm × W 14.3 cm × L 18.1 cm
- Carton (outer): 6 pieces, weight 2.002 kg; dimensions: H 19.9 cm × W 30.4 cm × L 40.2 cm
Warranty
- Warranty: 18 months
Sustainability & environmental data
- SCIP number: 6ba39e26-4b09-4936-93d2-efbdac7ff03a
- Packaging without plastic: No
- Recycled cardboard packaging: No
- Take-back: Yes
- WEEE: Disposal not in household waste; follow local regulations
- Total lifecycle carbon footprint: ~11 kg CO2 eq.
- Manufacturing (A1–A3): ~8 kg CO2 eq.; Distribution (A4): ~0.1 kg; Installation (A5): ~0.1 kg; Use phase: ~4 kg; End-of-life (C1–C4): ~0.6 kg
- Recycling potential: 9%; PVC-free: Yes
Scope of delivery / Documents
- Product datasheet
- Declaration of Conformity (Sustainability) / REACh statement
- System user guide / Technical information
- Declaration of conformity (CE)
- Certificates (e.g., VDE)
- Catalog, instruction sheet, user guide and sustainability profile documents
Technical specifications (summary)
- Type: Presence detector with 2 relay outputs
- Voltage: 220/230 V AC; Frequency: 50/60 Hz
- Outputs: 2 channels; output current up to 10 A (depending on load)
- Detection range: radius 7 m; detection angle 0–360°
- Lux setting: 10–1000 lux; Time setting: 10 s–120 min
- Mounting: ceiling at 2.5 m; Protection class: IP20
- Housing: glossy PC; Color: Polar white (RAL 9010)
- EAN: 4042811182397; Warranty: 18 months
