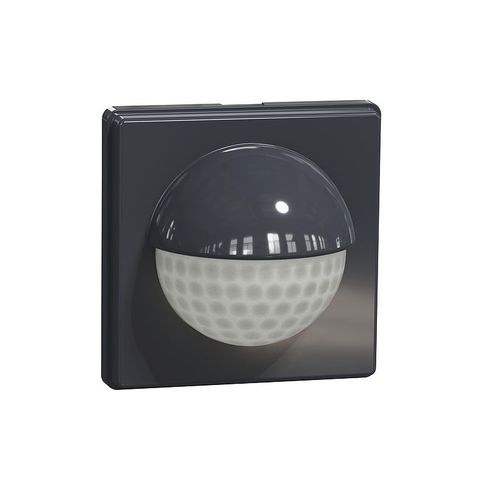

Indoor presence sensor MEG5710-7214recessedcommercialhome
Add to favorites
Compare this product
Characteristics
- Location
- indoor
- Installation
- recessed
- Sector
- home, commercial
- Electric powered
- mains powered
- Other characteristics
- contemporary
- Color availability
- gray
- Detection range (m)
Min.: 8 m
(26'02" )Max.: 12 m
(39'04" )- Detection angle
180 °
Description
Product overview
Product details
Compatible frames (selection)
Compatible inserts / main functions (selection)
Notes
Characteristics / technical specifications
- Type: ARGUS 180 UP sensor module (flush‑mount module)
- Aesthetic name / design line: Aquadesign
- Colour: Anthracite (RAL 7024)
- Brand: Merten
Product details
- Product code / commercial reference: MEG5710-7214
- Product or component type: Motion detector / sensor module
- Device representation: Module
- Housing variant: Flush‑mounted
- Material: Polycarbonate
- Main colour: Anthracite
- Ingress protection (IP): IP44
- Recommended mounting height: 1.1 m
- Detection angle: 180° horizontal
- Detection range: Front: 8 m; Side: 12 m
- Time delay: 10 s – 30 min
- Packaging weight (unit): 72,000 g
- Packaging unit: 1 piece per pack
- Warranty: 18 months
Compatible frames (selection)
- 400114 – AQUADESIGN frame, 1‑gang, anthracite
- 400214 – AQUADESIGN frame, 2‑gang, anthracite
- 400314 – AQUADESIGN frame, 3‑gang, anthracite
- 400414 – AQUADESIGN frame, 4‑gang, anthracite
- 400144 – AQUADESIGN frame, 1‑gang, white
- 400244 – AQUADESIGN frame, 2‑gang, white
- 400344 – AQUADESIGN frame, 3‑gang, white
- 400444 – AQUADESIGN frame, 4‑gang, white
Compatible inserts / main functions (selection)
- MEG5190-0000 – Central unit insert
- MEG5151-0000 – Electronic switching insert
- MEG5161-0000 – Relay switching insert
- MEG5162-0000 – Relay switching insert, 2‑gang
- MEG5171-0000 – Universal dimmer insert
- MEG5180-0000 – Control insert 1–10 V
- MEG5185-0000 – DALI control insert
Notes
- Colour reference: Anthracite (RAL 7024)
- Material price group: E0
- Recommended retail price (as shown on product page): €79.30 (excl. VAT, Germany)
- EAN code on product page: 4042811222451
Characteristics / technical specifications
- Series: Merten
- Aesthetic name: Aquadesign
- Product or component type: Motion detector
- Colour: Anthracite (RAL 7024)
- Material: Polycarbonate
- Housing variant: Flush‑mounted / Module
- Recommended mounting height: 1.1 m
- Detection angle: 180° horizontal
- Detection range: front 8 m, side 12 m
- Adjustable time delay: 10 s – 30 min
- Protection rating: IP44
- Packaging unit: 1 piece
- Packaging weight: 72 g
- VPE 2 (storage/transport): quantity 30, weight 2.560 kg (information on product page)
- Warranty: 18 months
- EAN: 4042811222451
