Indoor motion sensor MEG5710-0419

recessedcommercialhome

Product name

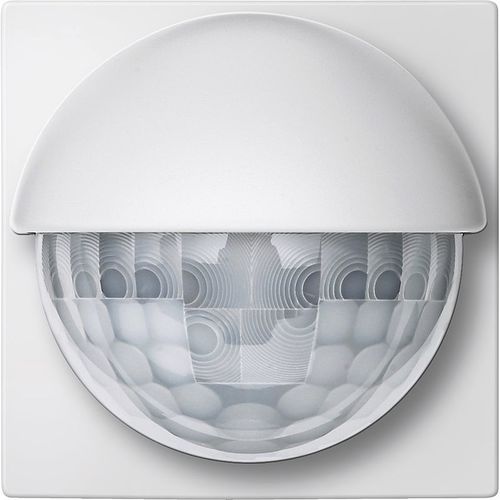

ARGUS 180 UP sensor module, polar white (RAL 9010), System M

Short overview
The ARGUS 180 UP sensor module is a flush-mounted (UP) motion/presence detector from the Merten ARGUS 180 series. Designed for installation in 55 x 55 mm mechanisms, manufactured in polycarbonate, colour polar white (RAL 9010). EAN: 4042811163938.

Main features

• Series: Merten
• Product type: Motion sensor
• Color: Polar white (RAL 9010)
• Material: Polycarbonate
• Housing variant: Flush-mounted
• Device representation: Mechanism with central plate
• Mounting height: 1.1 m
• Detection angle: 180° horizontal
• Detection range: Front: 8 m; Side: 12 m
• Switch-on duration: 30 minutes
• Time delay: 10 s
• Aesthetic dimension: 55 x 55 mm

Packaging and logistics

• VPE 1 type: PCE
• Units per pack: 1
• Packaging weight: 64,000 g
• VPE 1 height: 6,800 cm
• VPE 1 width: 7,700 cm
• VPE 1 length: 7,700 cm
• VPE 2 type: CAR
• VPE 2 quantity: 40
• VPE 2 weight: 2,938 kg
• VPE 2 height: 19,700 cm
• VPE 2 width: 30,700 cm
• VPE 2 length: 40,700 cm

Warranty

• Warranty (months): 18

Sustainability / Environmental values

• Mercury-free: Yes
• Packaging without plastic: No
• Packaging with recycled cardboard: No
• SCIP number: 3496a48f-07bc-4af1-a6d8-1079b6285f88
• Take-back: Yes
• Sustainable packaging: No
• WEEE notice: The product must be disposed of according to applicable notices in EU markets and must not be included in household waste.
• REACH / RoHS declarations: Conforming declarations available
• Recyclability potential: 25 %
• Total lifecycle carbon footprint (CO2 eq.): 20 kg CO2 eq.
• CO2 footprint manufacturing phase [A1-A3]: approx. 2 kg CO2 eq.
• CO2 footprint distribution phase [A4]: approx. 0 kg CO2 eq.
• CO2 footprint installation phase [A5]: approx. 0 kg CO2 eq.
• CO2 footprint use phase [B2,B3,B4,B6]: approx. 18 kg CO2 eq.
• CO2 footprint end-of-life [C1-C4]: approx. 0.1 kg CO2 eq.

Note
Color designation: Polar white (RAL 9010). Mechanical frame/cover frame compatibility variants are available for different system designs. Please refer to the technical documentation and user manuals for installation and connection information.
