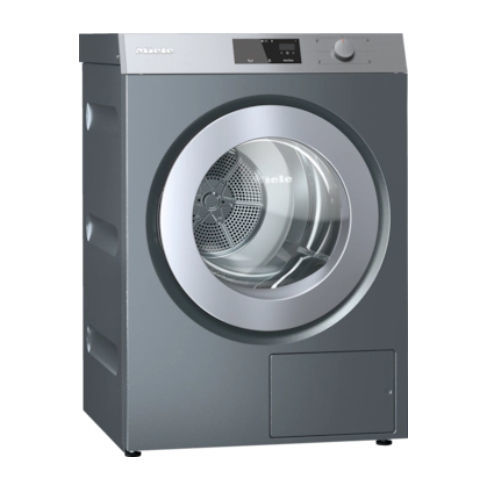

Commercial dryer PDR 510 COP [EL]

free-standing

Product overview
Professional vented tumble dryer for self-service and intensive/professional use with electric heating and M Select COP time control. Designed for uniform, gentle drying and prepared for network connectivity.

Highlights / Product benefits

• Low specific energy consumption for economical operation
• Stainless steel honeycomb drum for gentle fabric care and reduced creasing
• Short programme cycles for fast throughput (e.g. 36 min for Cottons/Normal at lowest recommended load ratio)
• M Select control system: quick direct programme selection and access to additional functions
• Symbol-based, language-neutral user interface suited to self-service environments
• Large-surface filter for easy maintenance and high lint capture
• Prepared for LAN and WLAN connectivity; Connector Box and optional LAN module for payment and management systems

Product details (table)
Construction type: Front loader
Range: Performance
Front: Iron grey
Fascia colour: Stainless steel
Load size (load ratio 1:22.5): 8 kg
Load size (load ratio 1:18): 10 kg
Drum volume (l): 180
Drying system: Exhaust air
Door opening Ø (mm): 440
Door opening angle (°): 180
Door hinge: left
Stainless steel honeycomb drum: yes

Performance data
Maximum evaporation capacity (l/h): 7.4
Specific energy consumption (kWh/kg): 0.51
Programme duration (min): 36 (Cottons/Normal, lowest recommended load ratio)

Control system
Control system: M Select Benchmark
Programmability: Setting of defined parameters
User interface: time-controlled
Time left display: countdown indicator
Control panel: easy-to-understand symbols

Standard electrical connection
Heating type: Electric
Electrical connection: 3N AC 400V 50/60 Hz
Electric heater rating (kW): 7.94
Total connected load (kW): 8.2
Fuse rating (A): 16

Dimensions and weight
External dimensions H × W × D (mm): 1020 × 700 × 763
External dimensions, gross incl. packaging H × W × D (mm): 1215 × 760 × 820
Net weight (kg): 72
Gross weight (kg): 80
Maximum floor load (N): 853

Emissions
Emission sound pressure level (workplace): 50 dB(A) re 20 µPa
Heat dissipation into room (MJ/h): 3.9

Other notable features

• Axial (longitudinal) airflow for uniform drying results
• SoftLift drum ribs for gentle fabric handling
• Large, easy-to-remove filter for high fluff capture
• Connector Box interface to connect payment, dispensing or peak-load systems
• Optional LAN module and integrated WLAN interface for wireless communication

Caractéristiques / spécifications techniques

• Model: PDR 510 COP
• Type: Professional vented dryer (exhaust air)
• Heating: Electric (7.94 kW)
• Drum volume: 180 l
• Load capacity: 8 kg (1:22.5) / 10 kg (1:18)
• Door diameter: 440 mm, opening angle 180°
• Electrical connection: 3N AC 400V 50/60 Hz; total connected load 8.2 kW; fuse 16 A
• Net weight: 72 kg
• Noise level: 50 dB(A)
• Connectivity: WLAN (integrated), LAN via optional module, communication slot for Connector Box
