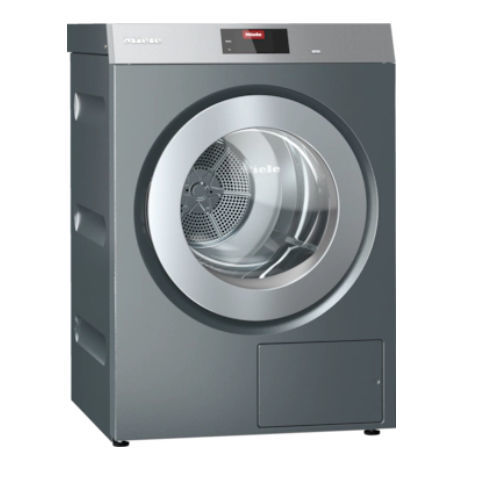

Commercial dryer PDR 910 [EL]

free-standing

Description
The PDR 910 [EL] is a professional vented dryer with electric heating and programmable M Touch Pro controls for flexible operation. Its 180 l stainless-steel honeycomb drum ensures gentle, uniform drying and the unit is prepared for LAN and WiFi connectivity to support networked workflows.

Key features

• Drum volume: 180 l
• Recommended load sizes: approx. 8 kg (1:22.5) to 10 kg (1:18)
• Stainless-steel honeycomb drum for fabric-friendly drying
• PerfectDry system for precision drying based on residual moisture measurement
• Prepared for LAN (via communication module) and WiFi
• Designed and tested for intensive professional use
• Programmable M Touch Pro control with residual-moisture regulation
• Large-area filter for easy maintenance
• Drum lighting for ergonomic unloading

Application / Suitable for

• Hotels and guesthouses; restaurants and catering
• Retirement and care homes, hospitals and healthcare facilities
• Facility management, commercial laundries, dry cleaners and small businesses
• Launderettes and self-service systems (optional payment-system connection)
• Universities, schools, sports clubs, beauty salons, spas and fitness centres
• Fire brigades, rescue services, stables, campsites, leisure complexes and certain industrial applications

Capacities (examples)

• Respirator masks: 4
• Overalls: 1
• Over jackets: 2
• Synthetic duvets: 1
• Synthetic pillows: 2
• Down duvets: 1
• Down pillows: 2
• Cloths (22 g): 182
• Cotton mops 40 cm: 42
• Cotton mops 50 cm: 36
• Microfibre mops 40 cm: 66
• Microfibre mops 50 cm: 47
• Summer horse blankets: 2

Technical specifications

• Model: PDR 910 [EL]
• Brand: Miele
• Construction type: Front loader
• Range: Performance Plus
• Front finish: Powder-coated, iron grey (option: stainless-steel fascia)
• Drum volume: 180 l
• Recommended load sizes: 8 kg (1:22.5) – 10 kg (1:18)
• Drying system: Exhaust air (vented)
• Door diameter: 440 mm; opening angle: 180°; hinge: left
• Stainless-steel honeycomb drum: yes
• Maximum evaporation capacity: 7.4 l/h (Cottons/Normal, specified test conditions)
• Specific energy consumption: 0.51 kWh/kg (Cottons/Normal, specified test conditions)
• Typical programme duration (Cottons/Normal, lowest recommended load): 36 min
• Control system: M Touch Pro; programmable; residual-moisture controlled; delay start up to 24 h; countdown display; selectable display languages
• Connectivity: WiFi; LAN via optional communication module; Connector Box for external systems; optional payment-system connection
• Heating: Electric; heater rating: 7.94 kW; total connected load: 8.2 kW; fuse rating: 16 A; standard connection: 3N AC 400V 50/60Hz
• Dimensions (H x W x D): 1020 x 700 x 763 mm (net)
• Net weight: 72 kg; Gross weight (with packaging): 80 kg
• Maximum floor load: 853 N
• Performance features: Axial airflow for high drying performance; SoftLift drum ribs for gentle handling; large-area ergonomic filter; short programme cycles for high throughput
• Emissions: Sound pressure at workplace: 50 dB(A) re 20 µPa; heat dissipation into room: 3.9 MJ/h
• Special functions: Low-temperature programme for sensitive fabrics; drum lighting; programme selection via colour frame; automatic anti-crease action
• Standards and certifications: VDE, VDE-EMC, IPX4 splash-proof, WEEE, UKCA; complies with Machinery Directive 2006/42/EC
• Accessories and consumables: available separately (e.g. payment systems, communication modules)
