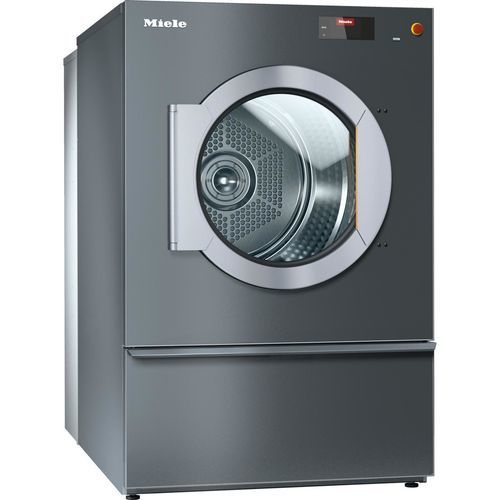

Commercial dryer PDR 914 HP [EL APDR 901]

with heat pumpfree-standing

Product
Commercial heat-pump tumble dryer for professional laundry applications. PDR 914 HP features a 250 l honeycomb drum and supports load capacities from approx. 10 kg to 14 kg depending on load ratio. Heat-pump module APDR 901 is ordered separately.

Key features

• Drum volume: 250 l (approx. 10–14 kg depending on load ratio)
• Honeycomb drum for gentle, even drying and reduced creasing
• Automatic heat-exchanger cleaning via StreamClean
• Up to 60% lower energy consumption compared with vented dryers (heat-pump technology)
• PerfectDry residual moisture measurement for consistent drying results
• Short programme cycles for fast and efficient operation
• Large-surface, easy-to-clean lint filter
• Intelligent drum control (automatic reversal, SoftLift ribs)
• Connectivity prepared for LAN and WiFi (LAN via separate communication module)
• Ready for integration with payment and external systems via Connector Box (self-service / commercial use)

Technical data (summary)

• Construction: Front loader
• Range: Performance Plus
• Front: Powder-coated iron grey (stainless steel variant available)
• Load capacity: 10 kg (1:25) — 14 kg (1:18)
• Drum volume: 250 l
• Drying system: Heat pump (APDR 901 heat-pump module ordered separately)
• Door diameter: 520 mm; Opening angle: 180°; Hinge: left (convertible)
• Stainless steel honeycomb drum: yes
• Max. evaporation capacity: 11.2 l/h
• Specific energy consumption (Cottons/Normal): 0.214 kWh/kg
• Typical programme duration (Cottons/Normal, lowest recommended load): 33 min
• Service life (test cycles): 40,000 drying cycles
• Control: M Touch Pro (programmable)
• Delay start: up to 24 h
• Electrical connection: 3N AC 400V 50Hz; Heat-pump heater rating: 10 kW; Total connected load: 5.1 kW; Recommended fuse: 16 A
• Noise emission: 51 dB(A)
• Heat dissipation into the room (max): 9.5 MJ/h

Application areas

• Hotels, restaurants and catering
• Retirement and care homes, hospitals and clinics
• Launderettes, self-service facilities and residential buildings
• Small businesses, laundries, dry cleaners and other commercial uses

Specifications

• Model: PDR 914 HP
• EAN: 4002516408826
• Material number (Mat. no.): 11718010
• Drum volume: 250 l
• Load capacity (recommended): 10 kg (1:25) – 14 kg (1:18)
• Drying system: Heat pump (requires APDR 901 heat-pump module)
• Heat-pump heater rating: 10 kW; Total connected load: 5.1 kW; Fuse: 16 A
• Door diameter: 520 mm; Door hinge: left; Opening angle: 180°; Convertible hinge: yes
• Control: M Touch Pro; Programmable controls; Residual moisture measurement (PerfectDry); Delay start up to 24 h; Countdown display
• Connectivity: WLAN and LAN (LAN via optional communication module); Connector Box for external system integration (payment/dispensing/energy management)
• Special functions: StreamClean automatic heat-exchanger cleaning; Honeycomb drum; SoftLift ribs; Large fluff filter; Axial airflow for optimum drying
• Performance: Max. evaporation 11.2 l/h; Specific energy consumption 0.214 kWh/kg (Cottons/Normal to 0% residual moisture)
• Noise emission: 51 dB(A)
• Dimensions: see technical data (height/width/depth and gross/net weights available in product details)
